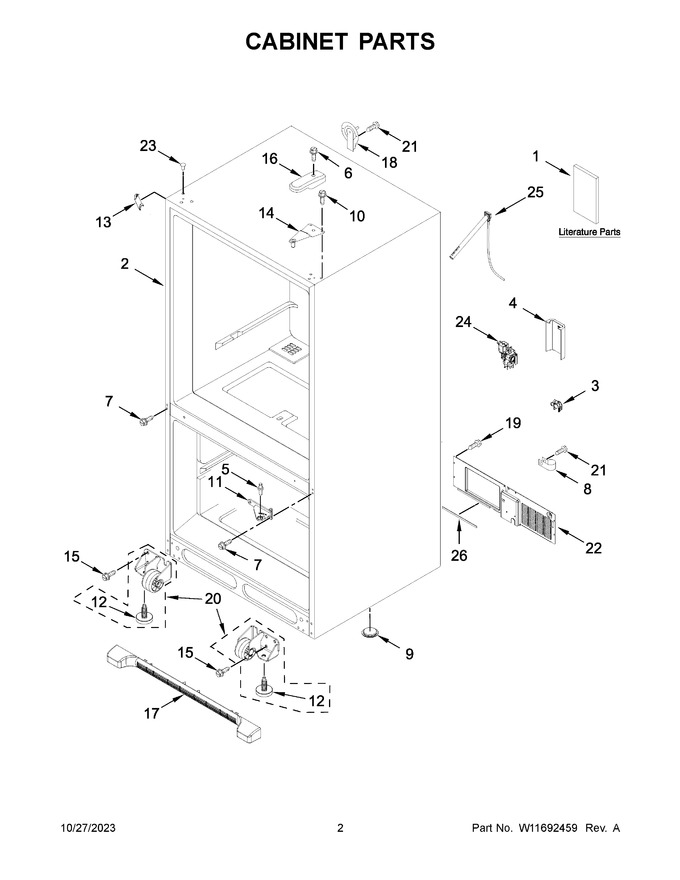

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11479841 | Owner's Manual |
|
- | |||||
| 2 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 4 | W10208592 | Cover, Valve |
|
- | |||||
| 5 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 6 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 7 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 9 | M0310343 | Plug, Button (white) |
|
$ 11.20 | |||||
| 10 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 11 | W11689473 | Hinge, Center (Replaces: W11610756) |
|
$ 69.79 | |||||
| 12 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 13 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 14 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 15 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 16 | W11106366 | Cover, Hinge (grey) (Replaces: 12477601AP) |
|
$ 75.82 | |||||
| 17 | WPW10534160 | Assembly, Grille (includes Clips) (grey) (Replaces: W10534160) |
|
Immediately | $ 72.60 | ||||
| 18 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 20 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 21 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 22 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 23 | WP12246610 | Plug, Hole (grey) (Replaces: 12246610) |
|
Immediately | $ 8.15 | ||||
| 24 | W11519244 | Valve, Inlet (Replaces: W11446817) |
|
Immediately | $ 89.72 | ||||
| 25 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 91.27 | ||||
| 26 | W11534847 | Gasket |
|
- | |||||
| 1A | W11644246 | Energy Guide |
|
- | |||||
| 1B | W11312474 | Tech Sheet |
|
- | |||||
| 20A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 |
