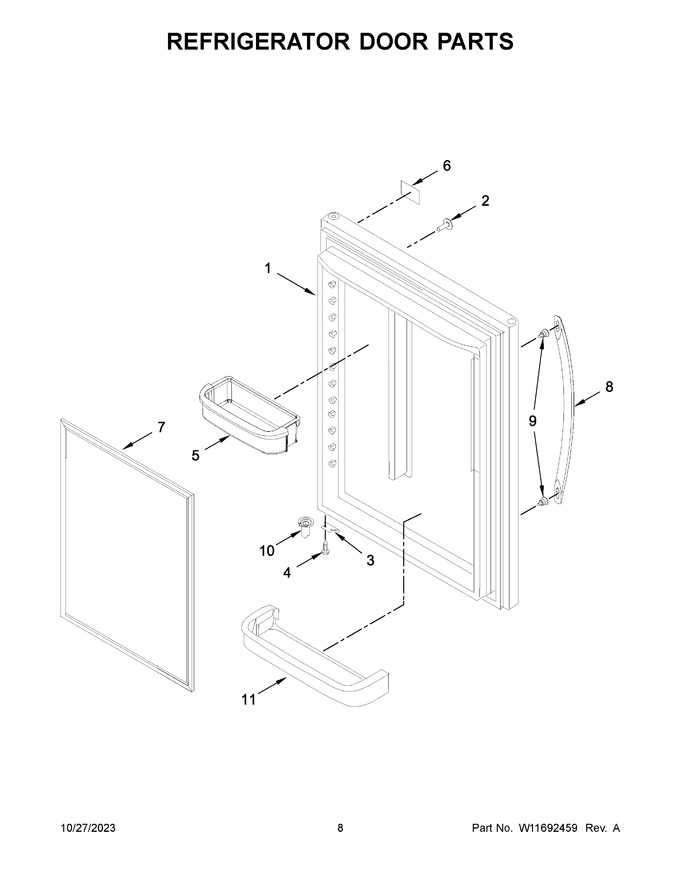

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107554SQ | Door, Refrigerator (stainless) (Replaces: 13107554S) |
|
$ 1,166.29 | |||||
| 2 | WP12246610 | Plug, Hole (grey) (Replaces: 12246610) |
|
Immediately | $ 8.15 | ||||
| 3 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 4 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 7 | W10443314 | Gasket, Door (grey) |
|
Immediately | $ 349.07 | ||||
| 8 | W11459378 | Handle, Door (stainless) (Replaces: W10686482) |
|
Immediately | $ 183.89 | ||||
| 9 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 10 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 11 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 |
