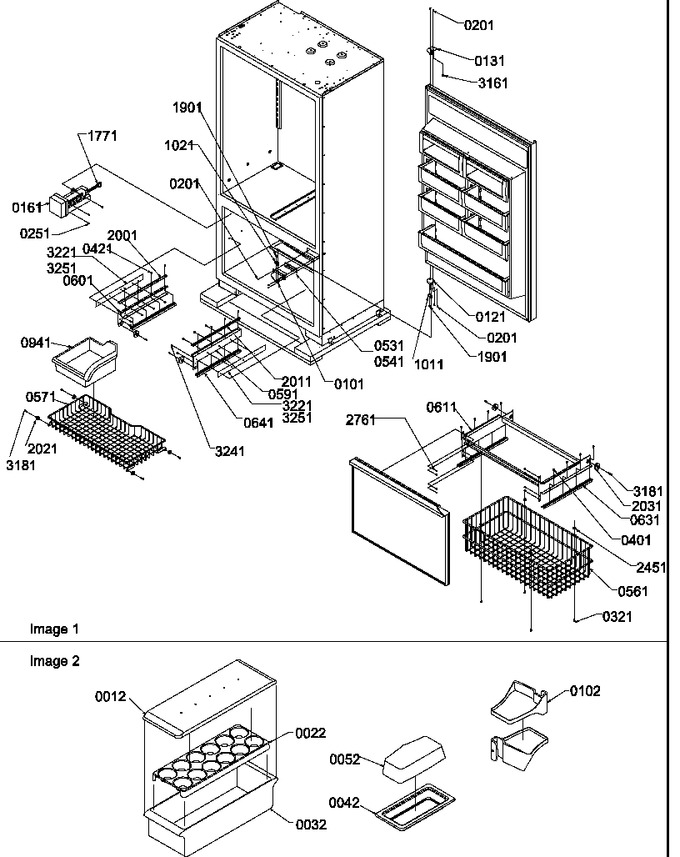

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 22 | 10436505 | Tray, Egg |
|
- | |||||
| 32 | 10423128 | Bin-utility |
|
- | |||||
| 42 | 12052701 | Dish, Butter |
|
- | |||||
| 52 | 12070901 | Cover-butter |
|
- | |||||
| 101 | 12119401 | Assy, L Ctr Hinge |
|
- | |||||
| 102 | 12104901 | Snugger-shelf |
|
- | |||||
| 121 | 12119502 | Hinge-tap L Lw |
|
- | |||||
| 131 | 12043404 | L Up Pivot Plt Ass`y (pin) |
|
- | |||||
| 161 | D7824706Q | Assy, Ice Maker (Replaces: 10563707) |
|
Immediately | $ 167.35 | ||||
| 201 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 251 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 321 | WP3400094 | Screw (Replaces: M0253942) |
|
$ 9.26 | |||||
| 401 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 421 | 8169479 | Screw (Replaces: M0215318) |
|
$ 7.30 | |||||
| 531 | 12068402 | Shim, Ctr. Hinge |
|
- | |||||
| 541 | 12068403 | Shim, Ctr. Hinge |
|
- | |||||
| 561 | 12196401 | Basket, Bottom Frz |
|
- | |||||
| 571 | 12234601 | Basket-freezer |
|
- | |||||
| 591 | 12183003 | Outer Gli Brkt-e Ct |
|
- | |||||
| 601 | 12183004 | Outer Gli Brkt-e Ct |
|
- | |||||
| 611 | 12087901 | Assy, Basket Frame |
|
- | |||||
| 631 | 12189101 | Glide, Bottom |
|
- | |||||
| 641 | 12189201 | Glide, Top |
|
- | |||||
| 941 | 12193401 | Pan-ice |
|
- | |||||
| 1011 | 12055602 | Closure-door |
|
- | |||||
| 1021 | 12055601 | Closure-door |
|
- | |||||
| 1771 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 1901 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
Immediately | $ 14.72 | ||||
| 2001 | 12128301 | Glide, L. Up Frz Bskt |
|
- | |||||
| 2011 | 12128302 | Glide, R. Up Frz Bskt |
|
- | |||||
| 2021 | 12088001 | Roller, Up Bracket |
|
- | |||||
| 2031 | 12088101 | Roller, Outer Glide |
|
- | |||||
| 2451 | M0274067 | Washer, Nylon |
|
- | |||||
| 2761 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 3161 | M0220928 | Screw, Shoulder |
|
- | |||||
| 3181 | M0220957 | Screw-shldr |
|
- | |||||
| 3221 | 12131902 | Shim-fz Basket |
|
- | |||||
| 3241 | M0253258 | Screw-tf |
|
- | |||||
| 3251 | 12131901 | Shim-fz Basket |
|
- | |||||
| NI | 12119601 | Shim-door Brkt |
|
- | |||||
| NI | 12119603 | Shim-door Brkt |
|
- | |||||
| NI | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| NI | M0213828 | Screw |
|
- | |||||
| NI | 12098001 | Brkt-dec Panel |
|
- | |||||
| NI | 12098002 | Brkt-dec Panel |
|
- | |||||
| NI | 12098003 | Brkt-dec Panel |
|
- | |||||
| NI | 12098006 | Brkt-dec Panel |
|
- | |||||
| NI | M0223729 | Screw |
|
- | |||||
| NI | 12119602 | Shim-door Brkt |
|
- | |||||
| NI | 12119606 | Shim-door Brkt |
|
- |
