Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 Y12179801 Low Side Assembly Appelez-nous -
13 12067603 Shroud, Evap Fan Appelez-nous -
22 12061701 Ht Ex Ass`y Appelez-nous -
23 10656001 Brk`t-mtr Mt/lw Appelez-nous -
32 WP10428409 Heater, Evap   (Replaces: 10428409) Special Order $ 158.41

33 10656101 Brkt Mtr Appelez-nous -
42 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

43 10654207 Motor,ecm Evap Fan Appelez-nous -
52 WP10442411 Thermostat, Defrost   (Replaces: 10442407) In-Stock Immediately $ 44.02

53 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

62 12067201 Block-r Evap Appelez-nous -
63 M0253543 Screw K Appelez-nous -
72 12067301 Block-l Evap Appelez-nous -
73 WP12059901 Fan-evap/5.250 Blade   (Replaces: 12059901) Special Order $ 19.67

83 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

93 12102401 Gasket, Evap Fan Shroud Appelez-nous -
441 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

451 12065605 Brkt-r Divider Appelez-nous -
461 12065606 Brkt-l Divider Appelez-nous -
471 12088801 Channel, Return Air Appelez-nous -
581 12068102 Cover,evap E-ct Appelez-nous -
721 12063301 Cover-fz Fan Appelez-nous -
1331 C8983701 Thermistor Domestic Appelez-nous -
1341 18805 Switch   (Replaces: C3680306) Special Order $ 21.59

1351 W11384469 Switch-nc Light   (Replaces: C3680307) In-Stock Immediately $ 39.09

1391 12089102 Cover, Frz Switch Appelez-nous -
1631 A3189348 Gasket, Foam Appelez-nous -
1711 A3030335 Gasket-per Ft Appelez-nous -
1731 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

1911 M0211014 Screw Appelez-nous -
2401 A3189368 Gasket, Foam Appelez-nous -
2431 A3030302 Gasket Appelez-nous -
3501 M0581001 Grommet, Screw Appelez-nous -
3611 WP489399 Screw, Se   (Replaces: M0232929) Special Order $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

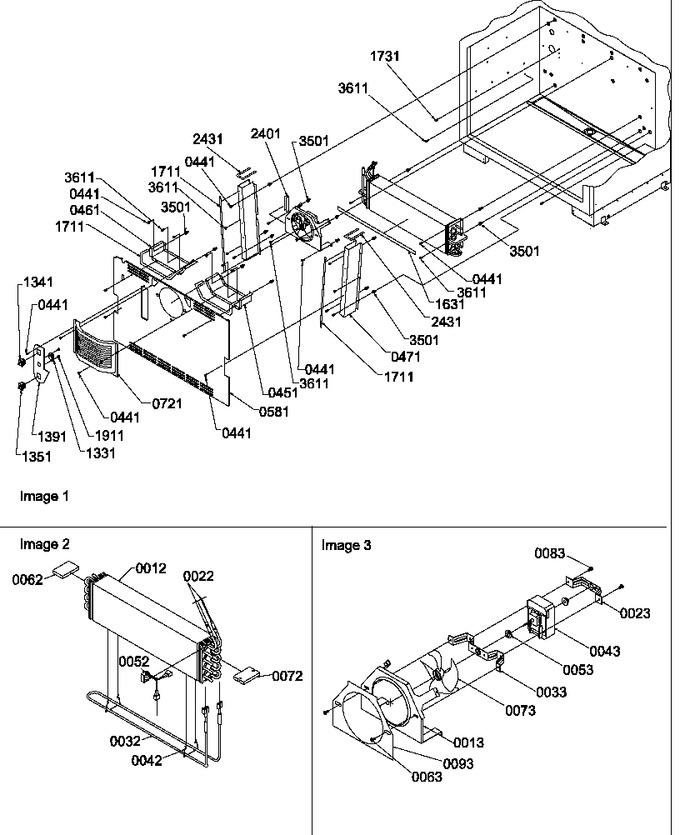

Diagram for B136CAL3 (BOM: P1197501W)
