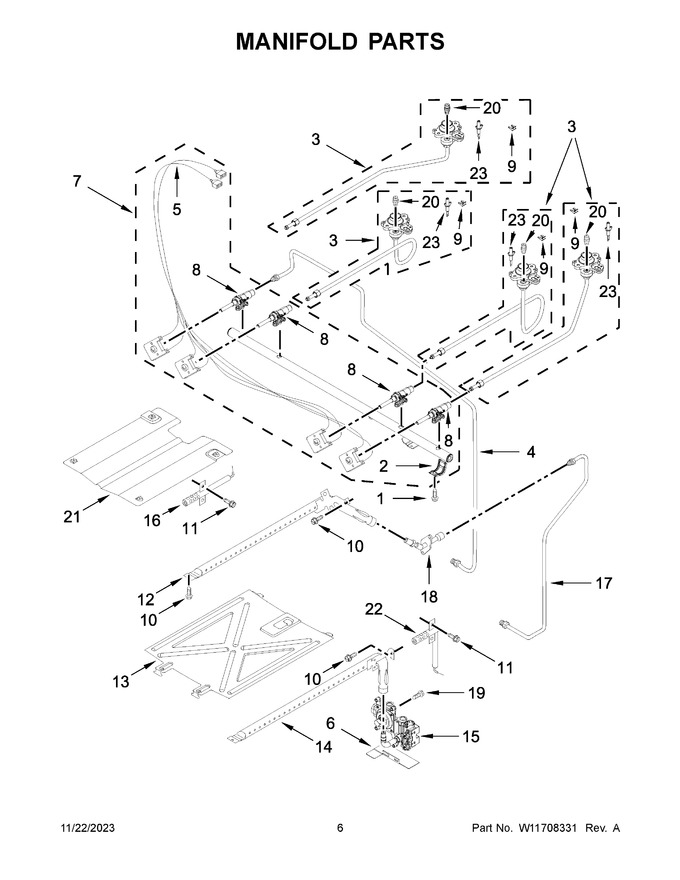

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577792 | Screw, Valve |
|
- | |||||
| 2 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 3 | W11459253 | Orifice Holder Assembly (left Front) |
|
- | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 159.35 | |||||
| 5 | W11701337 | Harness, Switch (Replaces: W11537750) |
|
- | |||||
| 6 | W10224921 | Bracket, Aegis |
|
- | |||||
| 7 | W11510001 | Manifold Assembly |
|
- | |||||
| 8 | W11759109 | Valve, Gas (left Front, Right Front) (Replaces: W11509685) |
|
- | |||||
| 9 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 10 | 3196265 | Screw |
|
- | |||||
| 11 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 239.36 | ||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | W11449506 | Regulator (Replaces: W11370883) |
|
$ 201.69 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 85.81 | ||||
| 17 | W10420040 | Tube, Broiler Supply |
|
$ 194.54 | |||||
| 18 | W11435700 | Fitting, Broiler |
|
$ 89.09 | |||||
| 19 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 20 | W11700316 | Orifice (15k) (left Front, Right Front) (Replaces: W11485872) |
|
$ 16.73 | |||||
| 21 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 22 | W11524031 | Electrode, Bake (Replaces: W11450459) |
|
Immediately | $ 56.90 | ||||
| 23 | W11453940 | Electrode (left Front, Left Rear) (Replaces: W11428831) |
|
$ 64.46 | |||||
| 20A | W11485873 | Orifice (9.5k) (left Rear) |
|
$ 69.03 | |||||
| 20B | W11712434 | Orifice (5k) (right Rear) (Replaces: W11485871) |
|
$ 16.73 | |||||
| 23A | W11453920 | Electrode (right Front, Right Rear) (Replaces: W11428858) |
|
$ 64.35 | |||||
| 3A | W11459254 | Orifice Holder Assembly (left Rear) |
|
- | |||||
| 3B | W11459255 | Orifice Holder Assembly (right Front) |
|
- | |||||
| 3C | W11459256 | Orifice Holder Assembly (right Rear) |
|
- | |||||
| 8A | W11509686 | Valve, Gas (left Rear) |
|
- | |||||
| 8B | W11509687 | Valve,gas (right Rear) |
|
$ 99.67 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10400495 | Orifice, Lp Bake (Replaces: W10400495) |
|
$ 94.32 | |||||
| NI | W11126051 | Lp Bake And Broil Kit (Replaces: W10566537) |
|
$ 129.04 | |||||
| NI | W10758273 | Orifice, Lp Broil (Replaces: W10465080) |
|
$ 8.53 | |||||
| NI | W11569688 | Lp Conversion Kit (Replaces: W11489400) |
|
$ 73.83 | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 |
