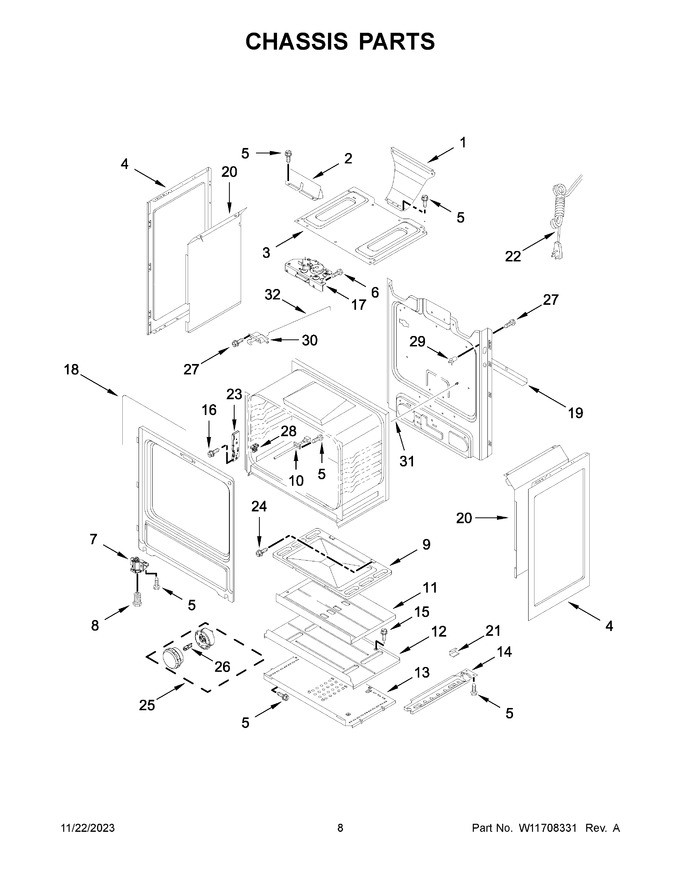

05 - Chassis Parts


06 - Door Parts


07 - Drawer And Broiler Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Box, Flue				$ 157.80
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 74.51
3	W11379351		Box-burner, Gas Sealed				$ 64.19
4	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 178.50
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
8	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 8.24
9	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 231.05
10	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
11	8053967		Baffle, Burner Oven				$ 315.96
12	8053969		Shield, Heat				$ 113.04
13	8053968		Shield, Lower		Appelez-nous	-
14	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 62.66
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
16	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
17	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 309.55
18	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 50.20
19	W10435470		Brace, Main Back				$ 81.74
20	W11379353		Retainer, Insulation (left)		Appelez-nous	-
21	W10137382		Clip, Panel			Immediately	$ 48.42
22	W11582239		Cord, Power   (Replaces: W10624590)				$ 17.59
23	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
24	W10379120		Screw		Appelez-nous	-
25	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 40.75
26	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
27	W11169708		Screw   (Replaces: 3196560)				$ 13.36
28	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 19.30
29	W11620712		Switch, Door   (Replaces: W11511828)				$ 46.31
30	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 256.36
31	9757239		Rod, Door Switch				$ 96.37
32	W10078370		Rod, Push Latch				$ 95.24
14A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 62.66
20A	W11379943		Retainer, Insulation (right)		Appelez-nous	-
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 122.73
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 123.64
