01 - Cover Sheet
02 - Cooktop Parts

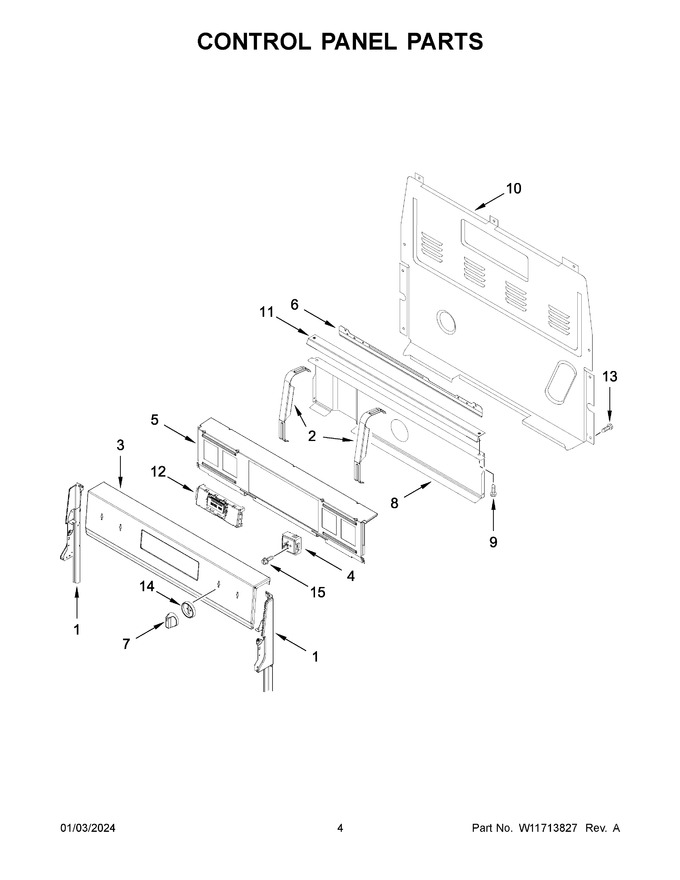

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11259041 | Endcap (white (left)) (Replaces: W11213291) |
|
$ 104.70 | |||||
| 2 | W10856361 | Bracket, Control |
|
- | |||||
| 3 | W11105827 | Console (white) (Replaces: W10869984) |
|
$ 515.16 | |||||
| 4 | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | W10901802 | Panel, Backer |
|
$ 96.79 | |||||
| 6 | W11443963 | Bracket, Eye Brow (white) |
|
$ 223.30 | |||||
| 7 | W11613600 | Knob (white) (Replaces: W11027257) |
|
Immediately | $ 48.10 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | W11536793 | Control, Electronic (lcx) (black) (Replaces: W11511567) |
|
Immediately | $ 275.61 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W10912200 | Bezel (white) |
|
$ 61.05 | |||||
| 15 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 1A | W11259700 | Endcap (white (right)) (Replaces: W11213293) |
|
$ 104.70 | |||||
| 4A | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 4B | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 |
