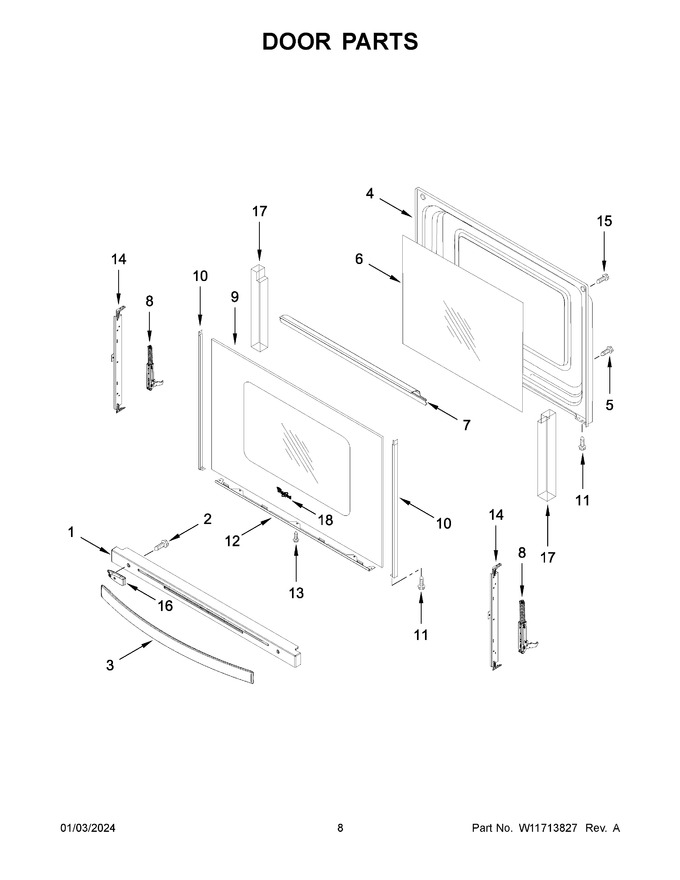

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11106937 | Trim, Top (white) (Replaces: W10880612) |
|
Immediately | $ 146.44 | ||||
| 2 | W10896982 | Screw (Replaces: W10477496) |
|
$ 8.40 | |||||
| 3 | W11107407 | Handle, Door (white) (Replaces: W11022644) |
|
$ 237.48 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 7 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 8 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 9 | W11107890 | Glass Assembly, Outer Door (white) (Replaces: W10871830) |
|
$ 368.61 | |||||
| 10 | W10334003 | Trim, Side (white) |
|
Immediately | $ 84.58 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | WPW10333990 | Trim, Bottom (white) (Replaces: W10333990) |
|
Immediately | $ 51.90 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 14 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 15 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 16 | W10917797 | Standoff, Handle (white) |
|
Immediately | $ 72.01 | ||||
| 17 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 27.02 | |||||
| 18 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 |
