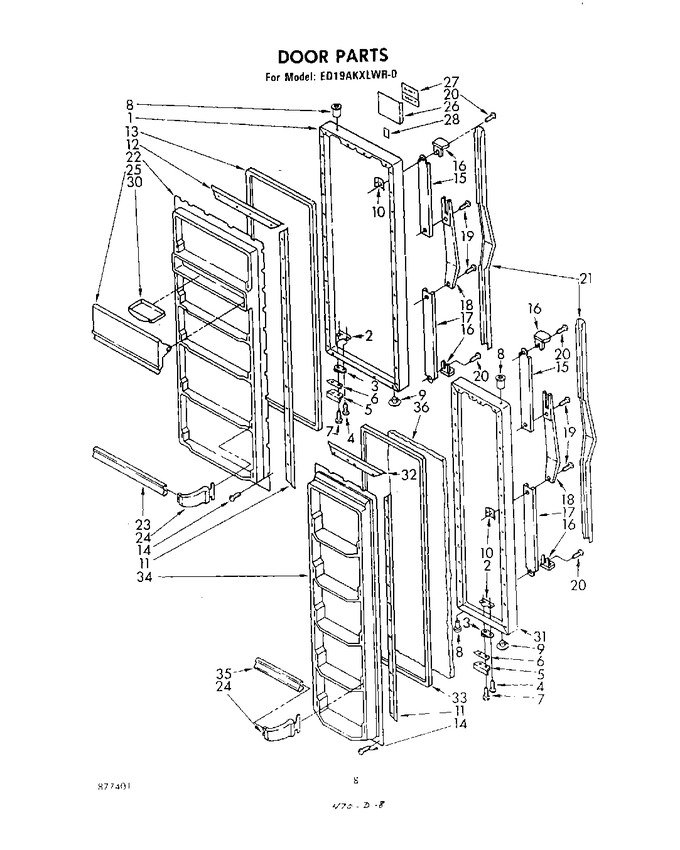

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 936632 | Exterior Door (refrigerator) (white) |
|
- | |||||
| 1 | 936633 | Exterior Door (refrigerator) (coffee) |
|
- | |||||
| 1 | 936634 | Exterior Door (refrigerator) (golden Harvest) |
|
- | |||||
| 1 | 936635 | Exterior Door (refrigerator) (avocado) |
|
- | |||||
| 1 | 936636 | Exterior Door (refrigerator) (almond) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 4318165 | Door Closer, Cam (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 4 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 5 | 988420 | Bracket, Door Stop |
|
- | |||||
| 6 | 988421 | Shim, Door Stop |
|
- | |||||
| 7 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 8 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 9 | 534927 | Hole Plug (white) |
|
- | |||||
| 9 | 989878 | Hole, Plug (coffee) |
|
- | |||||
| 9 | 989879 | Hole Plug (golden Harvest) |
|
- | |||||
| 9 | 989880 | Hole, Plug (avocado) |
|
- | |||||
| 9 | 989197 | Hole Plug (almond) |
|
- | |||||
| 10 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 11 | 836120 | Retainer, Gasket Side |
|
- | |||||
| 12 | 836121 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 13 | 2188404A | Door Gasket, Magnetic (Replaces: 943116) |
|
$ 269.26 | |||||
| 14 | WP489069 | Screw, 7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 8.40 | ||||
| 14 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 15 | 987008 | Insert Retainer (top) |
|
- | |||||
| 16 | 987006 | End Cap |
|
- | |||||
| 17 | 987010 | Insert Retainer (bottom) |
|
- | |||||
| 18 | 987009 | Handle |
|
- | |||||
| 19 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 20 | 488928 | Screw, 10-32 X 5/8 |
|
- | |||||
| 21 | 848330 | Insert, Handle |
|
- | |||||
| 22 | 943827 | Interior Door, Panel |
|
- | |||||
| 23 | 985494 | Trim, Door Shelf |
|
- | |||||
| 24 | WP849996 | Support, Trim End (Replaces: 943824) |
|
$ 7.95 | |||||
| 25 | 935322 | Door, Utility |
|
- | |||||
| 26 | 849310 | Escutcheon, Nameplate |
|
- | |||||
| 27 | 942217 | Insert, Nameplate |
|
- | |||||
| 28 | 991259 | Tape Strip |
|
- | |||||
| 30 | 520747 | Tray, Butter |
|
- | |||||
| 31 | 936639 | Exterior Door Freezer (white) |
|
- | |||||
| 31 | 936643 | Exterior Door Freezer (almond) |
|
- | |||||
| 31 | 936642 | Exterior Door Freezer (avocado) |
|
- | |||||
| 31 | 936641 | Exterior Door Freezer (golden Harvest) |
|
- | |||||
| 31 | 936640 | Exterior Door Freezer (coffee) |
|
- | |||||
| 32 | 836122 | Retainer Gasket Top & Bottom Freezer |
|
- | |||||
| 33 | 2188405A | Door Gasket, Magnetic (Replaces: 943117) |
|
$ 368.63 | |||||
| 34 | 943828 | Interior Door Panel |
|
- | |||||
| 35 | 935361 | Trim Door Shelf |
|
- | |||||
| 36 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- |
