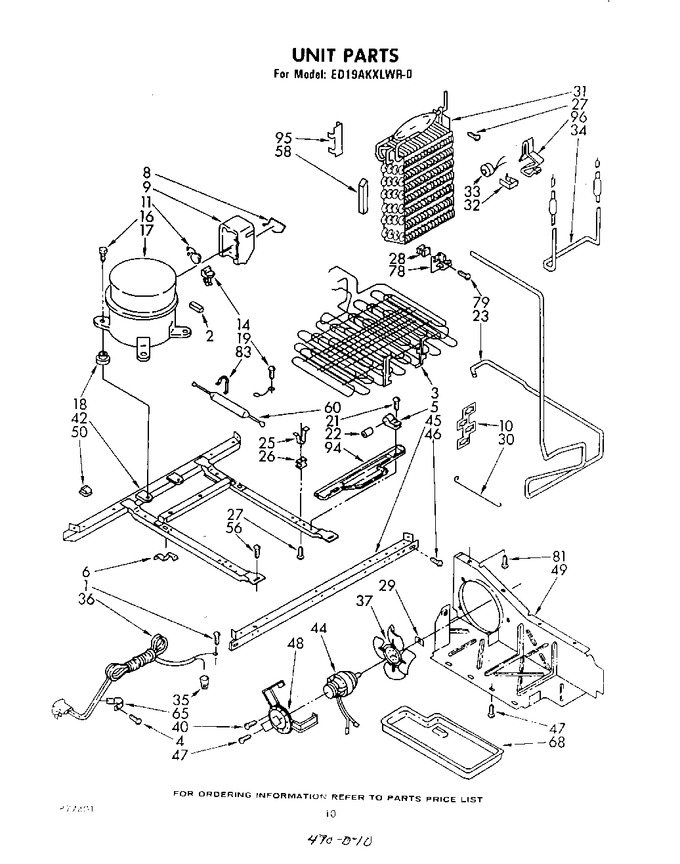

SELECT A DIAGRAM

02 - Cabinet


03 - Airflow And Control


04 - Liner


05 - Door


06 - Unit , Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	488474		Screw, Ground		Appelez-nous	-
2	547272		Bumper		Appelez-nous	-
3	481846		Condenser		Appelez-nous	-
4	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
8	531318		Strap, Cover		Appelez-nous	-
9	549945		Cover		Appelez-nous	-
10	987210		Spacer Condenser		Appelez-nous	-
11	549041		Overload		Appelez-nous	-
14	989662		Relay		Appelez-nous	-
14	989661		Relay (alternate)		Appelez-nous	-
16	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
17	464081		Compressor		Appelez-nous	-
18	547283		Grommet (4)		Appelez-nous	-
19	303776		Screw   (Replaces: 488879)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	510769		Dampener (2)		Appelez-nous	-
23	941662		Exchanger, Heat		Appelez-nous	-
25	548738		Clamp (4)		Appelez-nous	-
26	548737		Grommet		Appelez-nous	-
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
28	944454		Grommet		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	850156		Guard, Fan		Appelez-nous	-
31	851439		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387489		Defrost, Bimetal   (Replaces: 934424)				$ 108.99
34	WP549433		Heater, Defrost   (Replaces: 934445)				$ 175.73
35	227991		Nut, Wire		Appelez-nous	-
36	850626		Cord, Service		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
40	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
42	548654		Frame		Appelez-nous	-
44	R1211		Motor, Fan   (Replaces: 851618)				$ 145.61
44	833697		Motor, Fan (alternate)   (Replaces: 851619)			Immediately	$ 109.14
45	548662		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	850764		Baffle, Air		Appelez-nous	-
50	548745		Clip, Wire (2)		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
58	652985		Baffle, Air Evaporator (2)		Appelez-nous	-
60	W10843121		Drier   (Replaces: 978246)			Immediately	$ 57.13
65	549193		Clamp				$ 14.06
68	842041		Tray, Evaporating				$ 64.92
78	842436		Support, Evaporator		Appelez-nous	-
79	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 8.47
81	488978		Screw, 8-15 X 3/8		Appelez-nous	-
83	548508		Clamp, Drier		Appelez-nous	-
94	989269		Pan, Drip		Appelez-nous	-
95	549435		Shield, Heat (2)		Appelez-nous	-
96	350942		Primer White (13 Oz. Spray Can)				$ 94.14
96	978030		Valve, Access (3/4``)				$ 137.25
96	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
96	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
96	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
96	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
96	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
96	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
96	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
96	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
96	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
96	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
96	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
96	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
96	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
96	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
96	261888		Enamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
96	261890		Enamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
96	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
96	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
96	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
96	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
96	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
96	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
96	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
96	799833		Kit, Porcelain Repair (white)		Appelez-nous	-
96	833938		Kit, Terminal Connector				$ 8.47
96	944001		Guide, Use & Care		Appelez-nous	-
96	944002		Consumer Checklist		Appelez-nous	-
96	934460		Tech Sheet (service Information)		Appelez-nous	-
96	943011		Energy Label		Appelez-nous	-
96	877401		List, Parts		Appelez-nous	-
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
96	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
96	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
96	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
96	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
96	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
96	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
96	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
96	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
96	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
96	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
96	549419		Clamp (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
