SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

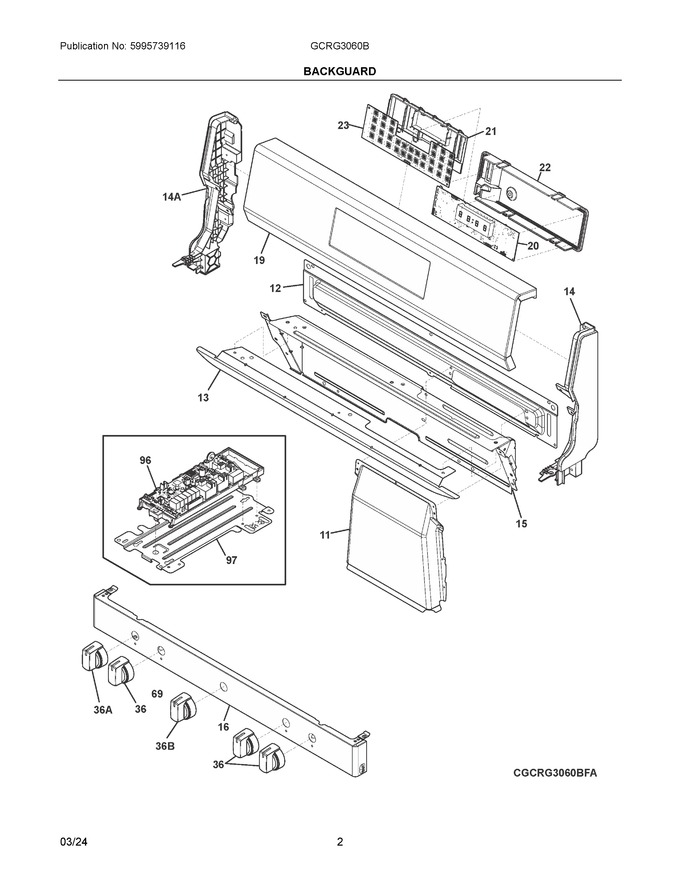

11	5304528376		Duct, Upper Exhaust, Black				$ 56.18
12	5304528377		Diffuser, Duct				$ 37.98
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 58.57
15	5304528226		Shield, Backguard, Black, Inner				$ 63.40
16	5304528483		Panel, Manifold, Stainless				$ 162.90
19	5304528253		Control Panel, Assembly, Stainless, W/control Brkt			Immediately	$ 138.20
20	5304538607		Controller, Eoc, Ui480   (Replaces: 5304533920)				$ 142.58
21	5304533876		Chassis, Control			Immediately	$ 19.90
22	5304536302		Cover, Control				$ 20.12
23	5304533886		Control, Main Board, Hmi Hector			Immediately	$ 57.60
36	5304536322		Knob, Top Valve, Stainless				$ 43.71
96	140171068053		Pc Board, Ovc Relay   (Replaces: 5304535108)			Immediately	$ 141.03
97	5304528372		Bracket, Ovc Board				$ 12.98
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 54.68
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
NI	5304533904		Harness, Wiring, Macs Panel, To Ui Board				$ 17.59
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.54
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIA	5304533469		Standoff, Harness, Plastic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
