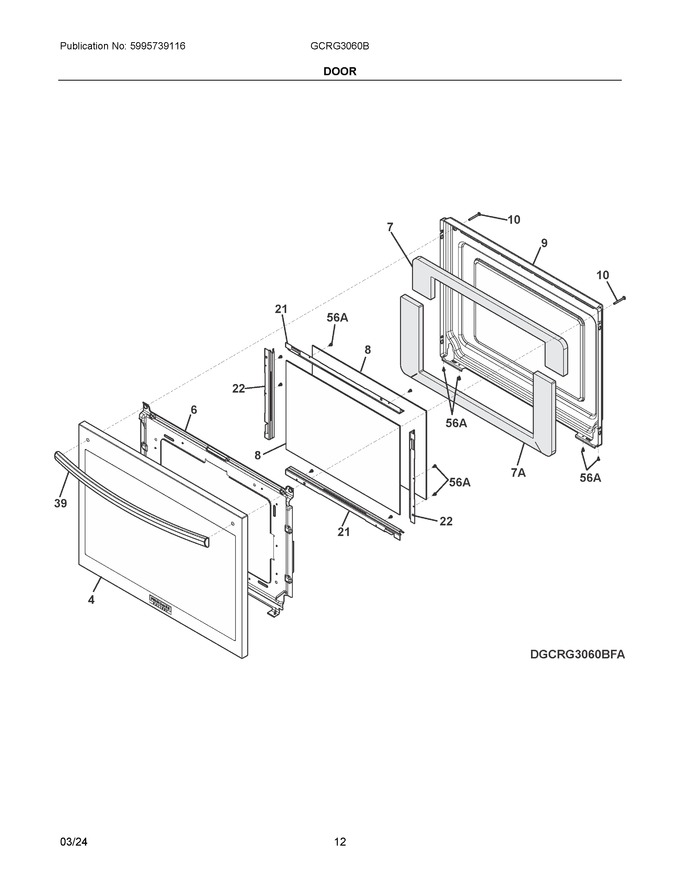

01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304536293 | Door Assembly, Outer, Stainless, W/glass |
|
Immediately | $ 240.71 | ||||
| 6 | 5304528103 | Shield, Wool |
|
$ 99.80 | |||||
| 7 | 140299178024 | Insulation, Door, Top (Replaces: 5304528501) |
|
- | |||||
| 8 | 5304528194 | Glass, Door, Inner, Pxl Shr |
|
Immediately | $ 115.22 | ||||
| 9 | 5304533466 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 130.38 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
Immediately | $ 2.53 | ||||
| 21 | 5304528104 | Bracket, Glass Pack, Horizontal |
|
- | |||||
| 22 | 5304528105 | Bracket, Glass Pack, Vertical |
|
$ 11.39 | |||||
| 39 | 140172171054 | Handle, Door, Stainless (Replaces: 5304534841) |
|
Immediately | $ 53.97 | ||||
| 56A | 5304526532 | Screw, M4.2 X 9.5, Black |
|
$ 3.37 | |||||
| 7A | 5304528500 | Insulation, Door, Bottom |
|
$ 15.12 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 |
