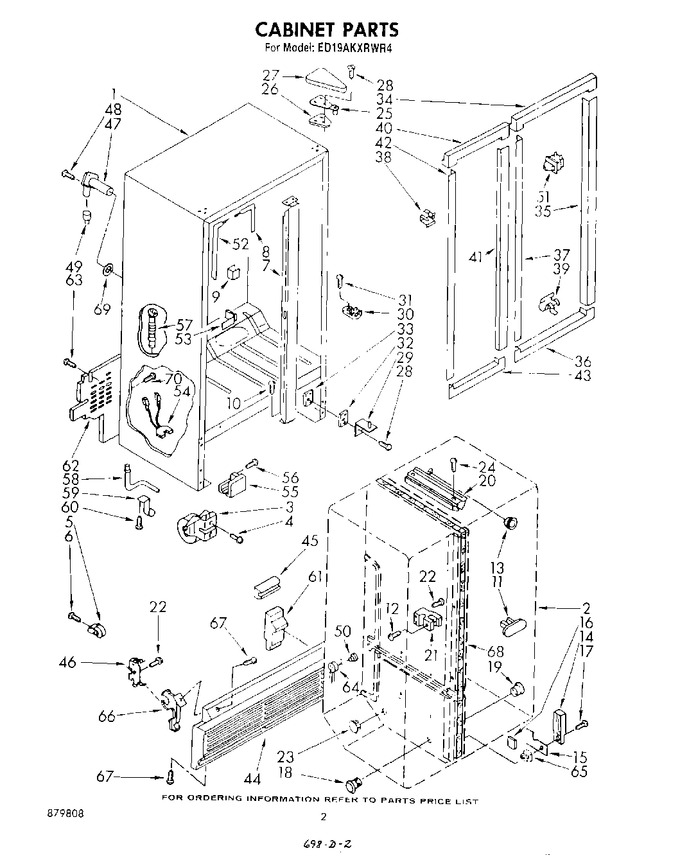

SELECT A DIAGRAM

02 - Cabinet


03 - Airflow And Control


04 - Liner


05 - Door


06 - Unit , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	981127		Roller, Front		Appelez-nous	-
4	488681		Screw, 5/16-24 X 1		Appelez-nous	-
5	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 42.18
6	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
7	989927		Center Rail, Mullion (almond)		Appelez-nous	-
7	985979		Center Rail, Mullion (white)		Appelez-nous	-
7	1100363		Center Rail, Mullion (platinum)		Appelez-nous	-
7	1100362		Center Rail, Mullion (toast)		Appelez-nous	-
7	989925		Center Rail, Mullion (golden Harvest)		Appelez-nous	-
8	851874		Heater, Mullion		Appelez-nous	-
9	510291		Retainer, Clip		Appelez-nous	-
10	488624		Screw, 8 X 3/8		Appelez-nous	-
10	WP308685		Screw (repair)   (Replaces: 488258)			Immediately	$ 7.87
11	836080		Mullion, Rail		Appelez-nous	-
12	488280		Screw, 8 X 3/4		Appelez-nous	-
13	851020		Grommet, Wiring		Appelez-nous	-
14	984101		Escutcheon Meat		Appelez-nous	-
15	984102		Slide, Meat Control				$ 5.02
16	992358		Pad, Foam		Appelez-nous	-
17	486214		Screw 8-15 X 1/2		Appelez-nous	-
18	843888		Retainer, Hole Insert		Appelez-nous	-
19	843887		Insert, Hole		Appelez-nous	-
20	842435		Gasket, Divider		Appelez-nous	-
21	836079		Mullion, Stabilizer		Appelez-nous	-
22	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
23	534927		Hole Plug		Appelez-nous	-
24	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 8.40
25	842039		Hinge, Top		Appelez-nous	-
26	836192		Shim, Top Hinge		Appelez-nous	-
27	842010		Hinge Cover (white)		Appelez-nous	-
27	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
27	989194		Hinge Cover (almond)		Appelez-nous	-
27	1100172		Hinge Cover (toast)		Appelez-nous	-
27	1100173		Hinge Cover (platinum)		Appelez-nous	-
28	488949		Screw (repair)		Appelez-nous	-
28	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
29	986763		Hinge Bottom (r.s.)		Appelez-nous	-
29	986764		Hinge, Bottom L.s.		Appelez-nous	-
30	WPW10329686		Door Closer, Cam   (Replaces: 986759)			Immediately	$ 5.90
31	WP486579		Screw, 8-32 X 1/4   (Replaces: 487983)				$ 7.89
32	836196		Shim, Bottom Hinge		Appelez-nous	-
33	836162		Tap Plate		Appelez-nous	-
34	836445		Breaker Trim, Top		Appelez-nous	-
35	1115703		Breaker Trim (r.s.)		Appelez-nous	-
36	836446		Trim, Breaker (bottom)		Appelez-nous	-
37	836213		Trim, Breaker (l.s.)		Appelez-nous	-
38	836090		Breaker Clip, Retainer		Appelez-nous	-
39	849479		Breaker Clip, Retainer		Appelez-nous	-
40	836444		Breaker, Trim Top (freezer)		Appelez-nous	-
41	836108		Breaker Trim, (r.s.) Freezer		Appelez-nous	-
42	1115704		Breaker Trim (l.s.) Freezer		Appelez-nous	-
43	836447		Breaker Trim (bottom) Freezer		Appelez-nous	-
44	944235		Exterior, Grille (golden Harvest)		Appelez-nous	-
44	944233		Exterior, Grille (white)		Appelez-nous	-
44	944237		Exterior, Grille (almond)		Appelez-nous	-
44	1100307		Exterior, Grille (toast)		Appelez-nous	-
44	1100308		Exterior, Grille (platinum)		Appelez-nous	-
45	546131		Grille, Bumper		Appelez-nous	-
46	989068		Grille, Support		Appelez-nous	-
47	653113		Fitting, Water Tube		Appelez-nous	-
48	WP98165		Screw, 89 X 5/8   (Replaces: 488401)				$ 8.57
49	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.67
50	850738		Receptacle Cap		Appelez-nous	-
51	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 39.09
52	934447		Heater, Stile		Appelez-nous	-
53	935663		Retainer Clip, Stile Heater		Appelez-nous	-
54	548734		Water Valve, Wiring		Appelez-nous	-
55	549947		Box, Junction		Appelez-nous	-
56	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
57	836068		Drain Fitting, Liner		Appelez-nous	-
58	841646		Extension, Drain Fitting		Appelez-nous	-
59	841648		Clip, Drain Extension		Appelez-nous	-
60	488978		Screw, 8-15 X 3/8		Appelez-nous	-
61	836372		Insert, Air Baffle		Appelez-nous	-
62	850457		Cover, Unit Compartment		Appelez-nous	-
63	WPW10141645		Screw, 89 X 1/2   (Replaces: 489084)				$ 8.05
64	481658		Wiring, Ice Maker		Appelez-nous	-
65	842339		Grommet		Appelez-nous	-
66	WP944224		Grille Support   (Replaces: 944224)				$ 7.94
67	489085		Screw, 8-22 X 5/16		Appelez-nous	-
68	985463		Divider Mullion		Appelez-nous	-
69	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
70	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488645)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
