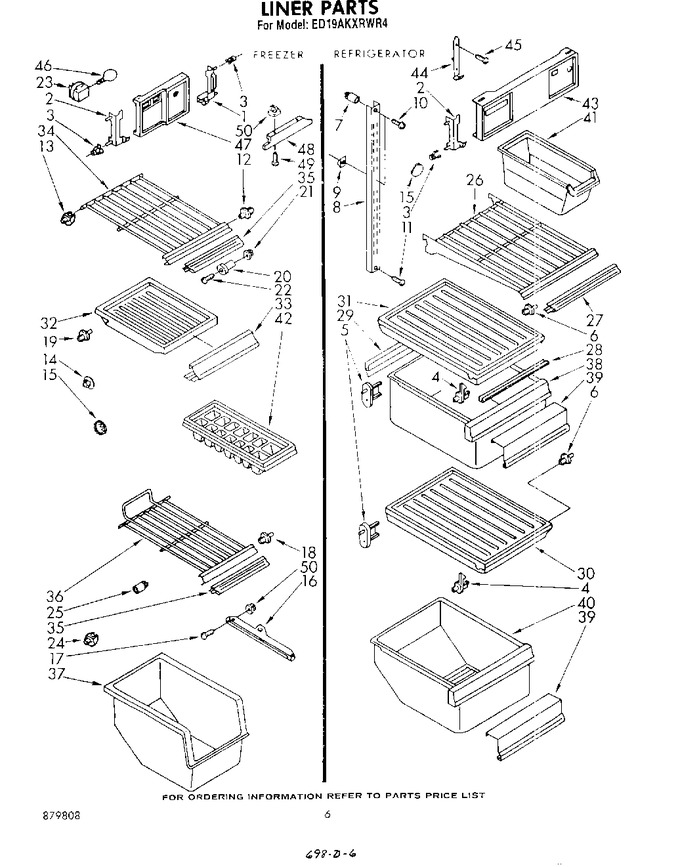

SELECT A DIAGRAM

02 - Cabinet


03 - Airflow And Control


04 - Liner


05 - Door


06 - Unit , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842355		Support, Light R.s.		Appelez-nous	-
2	842356		Support, Light L.s.		Appelez-nous	-
3	843945		Clip, Tubular		Appelez-nous	-
4	652675		Shelf, Stud		Appelez-nous	-
5	845986		Shelf, Stud		Appelez-nous	-
6	536475		Shelf, Stud				$ 7.28
7	512923		Screw, Grommet		Appelez-nous	-
8	934264		Shelfladder (2)		Appelez-nous	-
9	520965		Screw, Support Ladder				$ 31.35
10	488357		Screw, 8 X 1-1/4		Appelez-nous	-
11	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
11	488980		Screw (repair)		Appelez-nous	-
12	529758		Shelf, Stud		Appelez-nous	-
13	523264		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
13	523263		Shelf Stud Saddle (r.s.)		Appelez-nous	-
14	659598		Hole, Plug		Appelez-nous	-
15	519890		Hole, Plug		Appelez-nous	-
16	982321		Slide, Freezer Bin		Appelez-nous	-
17	487979		Screw, 8 X 1		Appelez-nous	-
18	512900		Stud, Retainer		Appelez-nous	-
19	521878		Shelf Stud		Appelez-nous	-
20	658944		Stud, Shelf		Appelez-nous	-
21	538449		Screw Grommet		Appelez-nous	-
22	487559		Screw, 8-15 X 1-1/4		Appelez-nous	-
23	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
24	210518		Shelf Support		Appelez-nous	-
25	533881		Grommet		Appelez-nous	-
26	936399		Shelf, Cantilever		Appelez-nous	-
27	935337		Shelf Trim Cantilever		Appelez-nous	-
28	987419		Crisper Gasket Front		Appelez-nous	-
29	987420		Crisper Gasket Rear		Appelez-nous	-
30	983817		Pan Slide & Cover		Appelez-nous	-
31	1108716		Pan Slide & Cover		Appelez-nous	-
32	837202		Solid Shelf		Appelez-nous	-
33	841025		Solid Shelf, Trim		Appelez-nous	-
34	981498		Shelf, Freezer		Appelez-nous	-
35	849263		Shelf, Freezer Trim		Appelez-nous	-
36	982219		Shelf, Ice Cube		Appelez-nous	-
37	1108719		Freezer, Bin Plastic		Appelez-nous	-
38	1108718		Pan, Crisper		Appelez-nous	-
39	988255		Overlay, Pan		Appelez-nous	-
40	1108715		Pan, Meat		Appelez-nous	-
41	WP982704		Container, Utility   (Replaces: 1106048)				$ 32.55
42	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
43	943218		Light Lens, Refrigerator		Appelez-nous	-
44	984552		Support, Light Lens		Appelez-nous	-
45	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
46	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
47	985456		Light Lens, Freezer		Appelez-nous	-
48	836216		Baffle, Liner Top		Appelez-nous	-
49	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
50	842339		Grommet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
