Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11589935 Owners Manual Appelez-nous -
2 W11693828 Arm, Hinge (left Hand)   (Replaces: W11673858) Special Order $ 102.56

3 W11698653 Cross Brace, Door   (Replaces: W11126789) Appelez-nous -
4 W11698657 Insulation, Front Panel   (Replaces: W11641124) Special Order $ 348.89

5 W11698515 Panel, Main Access (black)   (Replaces: W11625157) Special Order $ 383.25

6 W11726284 Front Panel (includes 4,17,19,20,21,22,23 & 24) (stainless)   (Replaces: W11545423) Special Order $ 678.07

7 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

8 W11698514 Panel, 2" Adjustable (black)   (Replaces: W11625159) In-Stock Immediately $ 151.25

9 W11698654 Insulation, Inner Door   (Replaces: W11564603) Special Order $ 63.12

10 W11698634 Screw   (Replaces: W10942031) Appelez-nous -
11 W11698633 Screw   (Replaces: W10941985) Appelez-nous -
12 W11690824 Panel, 4" Adjustable (black)   (Replaces: W11625156) Special Order $ 149.34

13 WP302868 Screw   (Replaces: W10942053) In-Stock Immediately $ 8.18

14 W11699047 Insulation, Door   (Replaces: W11575172) Appelez-nous -
15 W11699048 Insulation, Long Tub Lip   (Replaces: W11609389) Appelez-nous -
16 W11690892 Display, Floor   (Replaces: W11540965) In-Stock Immediately $ 217.55

17 W11698632 Nut, Barrel   (Replaces: W11634283) Appelez-nous -
18 W11320226 Handle (stainless)   (Replaces: W11213316) In-Stock Immediately $ 408.06

19 W11320231 Nameplate (stainless)   (Replaces: W11238657) Special Order $ 110.78

20 W11157086 Stud, Mounting   (Replaces: W11049903) In-Stock Immediately $ 8.87

21 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

22 W11545526 Support, Door (left) Appelez-nous -
23 W11729110 Screw   (Replaces: W11381263) Appelez-nous -
24 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 7.55

25 W11726286 Toe Kick Install Hardware   (Replaces: W11726119) Special Order $ 160.34

1A W11645479 Energy Guide Appelez-nous -
1B W11663923 Tech Sheet Appelez-nous -
22A W11545528 Support, Door (right) Appelez-nous -
2A W11693749 Arm, Hinge (right Hand)   (Replaces: W11673857) Special Order $ 102.56


    View Diagram in Separate Window     Print Icon   Print Part List

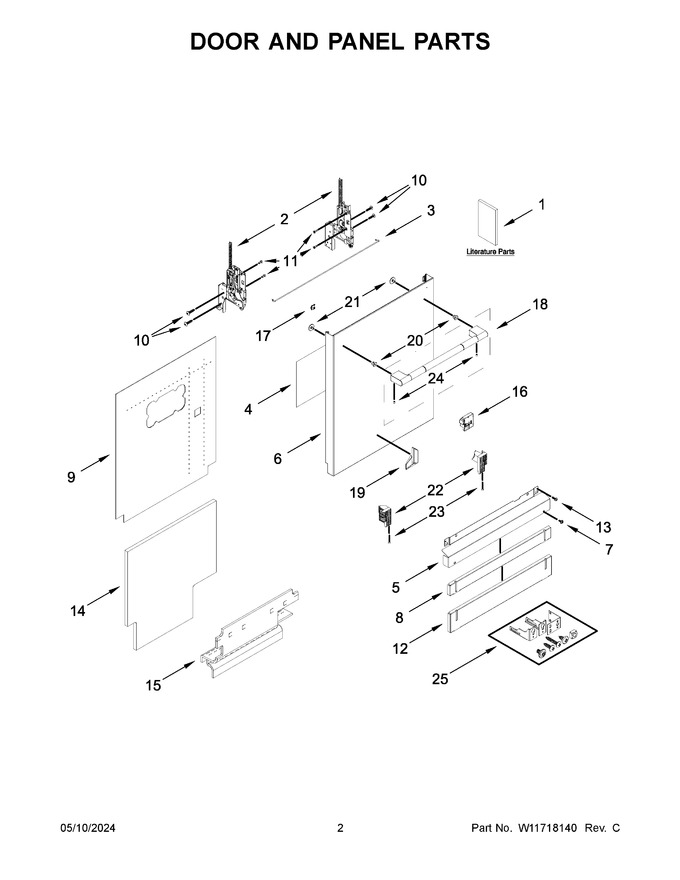

Diagram for JDAF5924RL0
