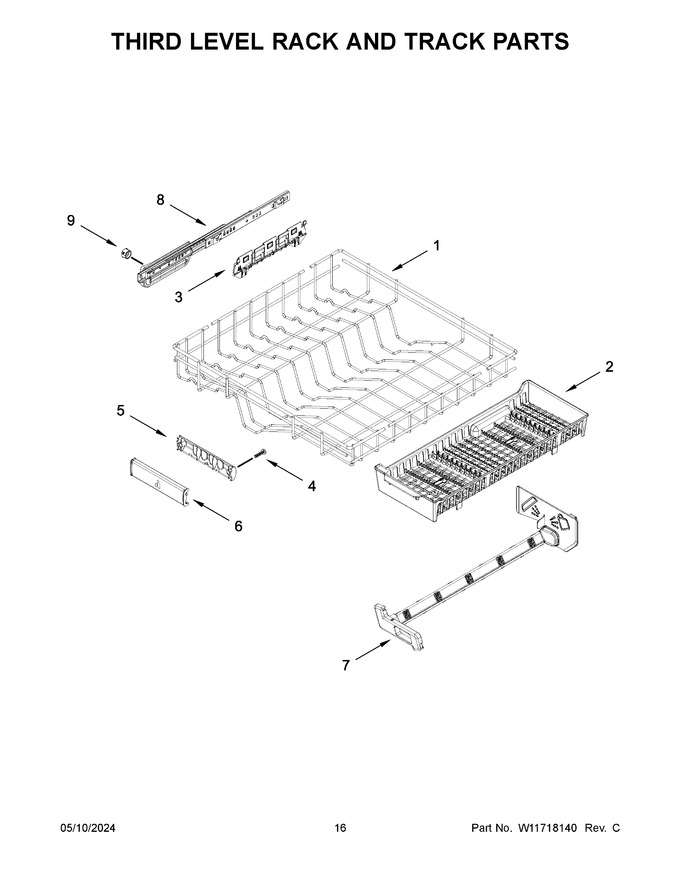

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11701286		Rack, Third Level   (Replaces: W11528027)				$ 131.49
2	W11698668		Silverware Tray   (Replaces: W11545952)		Appelez-nous	-
3	W11699550		Mount, Dishrack   (Replaces: W11543835)		Appelez-nous	-
4	W11698986		Screw   (Replaces: W11337336)				$ 87.74
5	W11701287		Handle, Rear   (Replaces: W11590236)		Appelez-nous	-
6	W11701288		Handle, Front   (Replaces: W11590243)		Appelez-nous	-
7	W11690890		Washarm Assembly   (Replaces: W11528575)		Appelez-nous	-
8	W11699549		Track, Dishrack (left)   (Replaces: W11549968)		Appelez-nous	-
9	W11698155		Nut, Tub   (Replaces: W11630670)				$ 14.42
8A	W11699551		Track, Dishrack (right)   (Replaces: W11549969)		Appelez-nous	-
