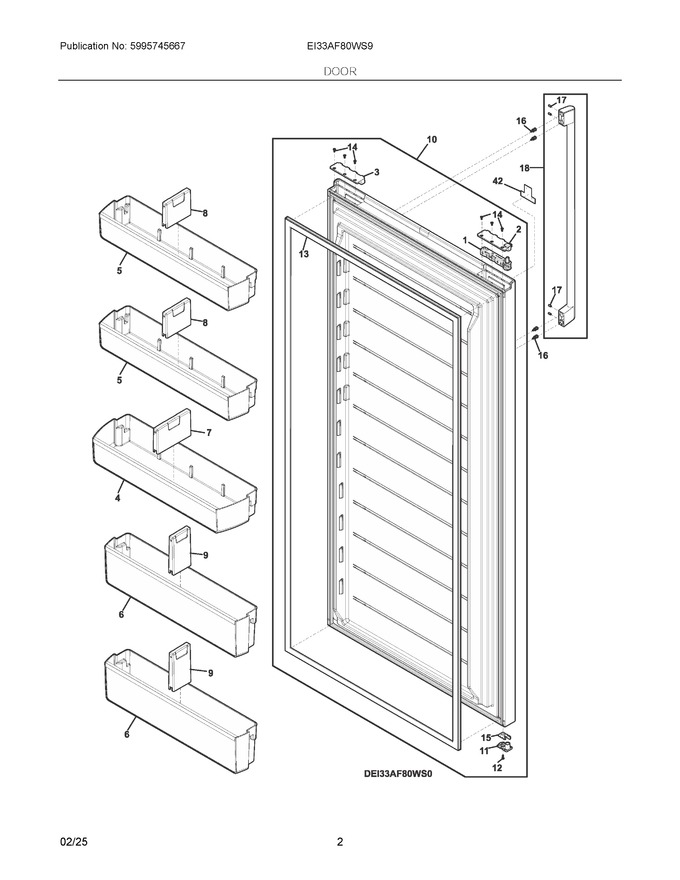

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524644		Closer Assembly, Door, Lh Upper			Immediately	$ 105.61
2	5304524624		Cover, Door Cap, Gray, Lh, Closer Side				$ 16.07
3	5304524625		Cover, Door Cap, Gray, Rh, Non-closer Side				$ 15.27
4	5304524631		Bin, Door, Gallon			Immediately	$ 165.86
5	5304539737		Bin, Door, 2 Liter   (Replaces: 5304524632)			Immediately	$ 128.68
6	5304539738		Bin, Door, Tall Items   (Replaces: 5304524633)		Appelez-nous	-
7	5304524846		Divider, Gallon, Door Bin				$ 32.13
8	5304524634		Divider, Door Bin, 2 Liter				$ 32.13
9	5304524635		Divider, Door Bin, Tall Items				$ 33.74
10	5304524741		Door Assembly, Lh Swing, Stainless			Immediately	$ 803.70
11	5304524745		Bearing, Door, Lower			Immediately	$ 8.84
12	241953903		Screw, Door Stop, Lower				$ 5.63
13	140190906879		Gasket, Door, Grey   (Replaces: 5304524888)			Immediately	$ 124.14
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
15	5304524768		Stop, Door, Lower Bearing				$ 12.05
16	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
17	218755410		Screw-set, 10-32 X .354 In		Appelez-nous	-
18	5304524807		Handle Assembly, Stainless, W/set Screws			Immediately	$ 202.42
42	5304532471		Label-nameplate (chrome)				$ 20.30
NIA	241601002		Wrench, Allen		Appelez-nous	-
