SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

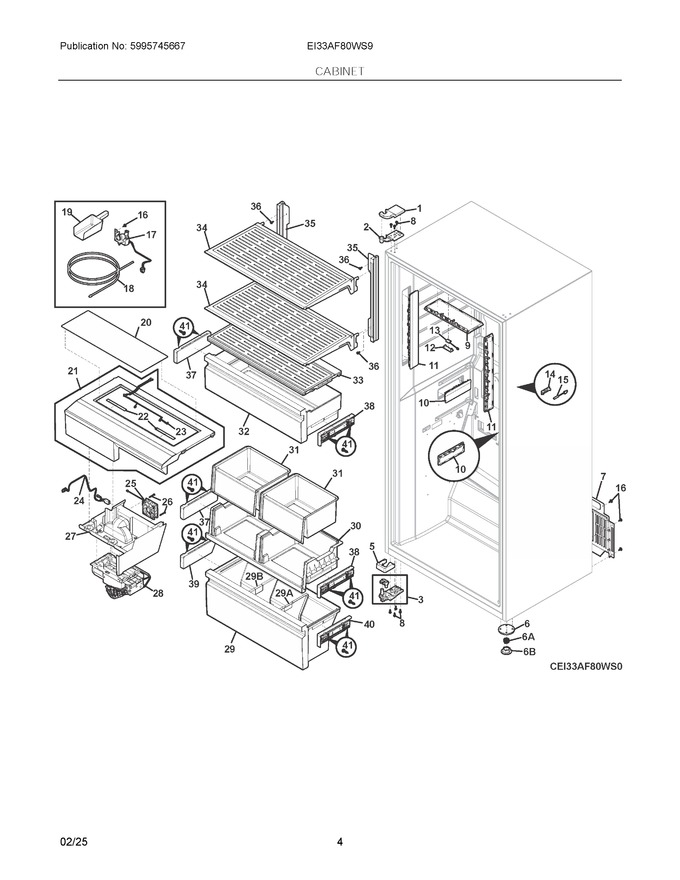

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524639		Cover, Hinge, Stainless, Lh Upper				$ 12.41
2	5304524637		Hinge, Door, Lh Upper				$ 196.63
3	5304525229		Hinge Assembly, Lower, Lh			Immediately	$ 80.05
4	5304525229		Bearing Assembly, Lower Hinge, Lh, W/stop   (Replaces: 5304525227)			Immediately	$ 80.05
5	5304525228		Cover, Hinge, Lh Lower				$ 12.05
6	5304528813		Base, Leveler Leg, Front			Immediately	$ 17.23
7	5304525858		Cover, Access, Machine Compt.				$ 61.86
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.42
9	5304536788		Light Assembly, Led, 2x Upper, W/lens, Pcb, Harn   (Replaces: 5304524657)				$ 59.49
10	5304524656		Light Assembly, Led, 1x, W/lens, Pcb, Harn			Immediately	$ 61.86
11	5304524658		Light Assembly, Led, 3x, W/lens, Pcb, Harn				$ 133.59
12	5304524762		Cover, Reed Switch, Grey				$ 10.75
13	5304527992		Switch, Reed   (Replaces: 242326001)			Immediately	$ 90.77
14	5304524760		Cover, Sensor, Grey				$ 10.45
15	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 26.38
16	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.37
17	5304538014		Valve, Water, Single Solenoid   (Replaces: 5304520540)			Immediately	$ 51.73
18	5304536764		Tube, Water   (Replaces: 218976828)			Immediately	$ 22.86
19	5304529200		Scoop, Ice   (Replaces: 5304524712)				$ 11.80
20	5304524780		Glass, Control Cover   (Replaces: 5304524781)				$ 114.87
21	5304524717		Control Cover, Assembly, Grey, Complete			Immediately	$ 576.47
22	5304524650		Pc Board, Led Cluster, Polaris			Immediately	$ 62.36
23	5304524766		Harness, Jumper, Led				$ 12.29
24	5304524779		Harness, Intermediate, To Ice Maker				$ 31.77
25	5304524796		Motor, Fan, Ice Maker			Immediately	$ 195.94
26	241953905		Screw, 8-18 X 1.25			Immediately	$ 12.64
27	5304524653		Housing, Ice Maker, Grey			Immediately	$ 49.00
28	243297610		Ice Maker, Assembly, 6-pin			Immediately	$ 171.46
29	5304524710		Drawer Assembly, Full Width, Lower, W/dividers				$ 269.60
30	5304524709		Shelf Assembly, Slide Out				$ 202.39
31	140130150026		Basket, Ice   (Replaces: 5304524711)				$ 60.46
32	5304524704		Drawer Assembly, Full Width, Upper				$ 238.17
33	140129039040		Cover Assembly, Crisper, Upper, W/front Gasket   (Replaces: 5304524684)		Appelez-nous	-
34	5304524672		Shelf Assembly, Metalic, Grey Rails				$ 179.10
35	140171013042		Rail, Shelf Support, Grey   (Replaces: 5304524842)		Appelez-nous	-
36	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.37
37	5304524854		Slide Assembly, 9 Inch, Grey, Lh				$ 89.17
38	5304524853		Slide Assembly, 9 Inch, Grey, Rh				$ 93.18
39	5304524856		Slide Assembly, 8 Inch, Grey, Lh				$ 89.17
40	5304524855		Slide Assembly, 8 Inch, Grey, Rh				$ 85.14
41	5304524845		Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg			Immediately	$ 3.21
29A	5304525861		Divider, Lower Drawer, Rh			Immediately	$ 38.56
29B	5304525862		Divider, Lower Drawer, Lh			Immediately	$ 36.15
6A	5304528814		Nut, Leg Leveler			Immediately	$ 9.64
6B	5304528815		Foot, Leg Leveler			Immediately	$ 11.25
NIA	5304525886		Gasket, Cover, Black, Front		Appelez-nous	-
NIA	297350900		Gasket, Shelf				$ 20.09

    View Diagram in Separate Window       Print Part List
