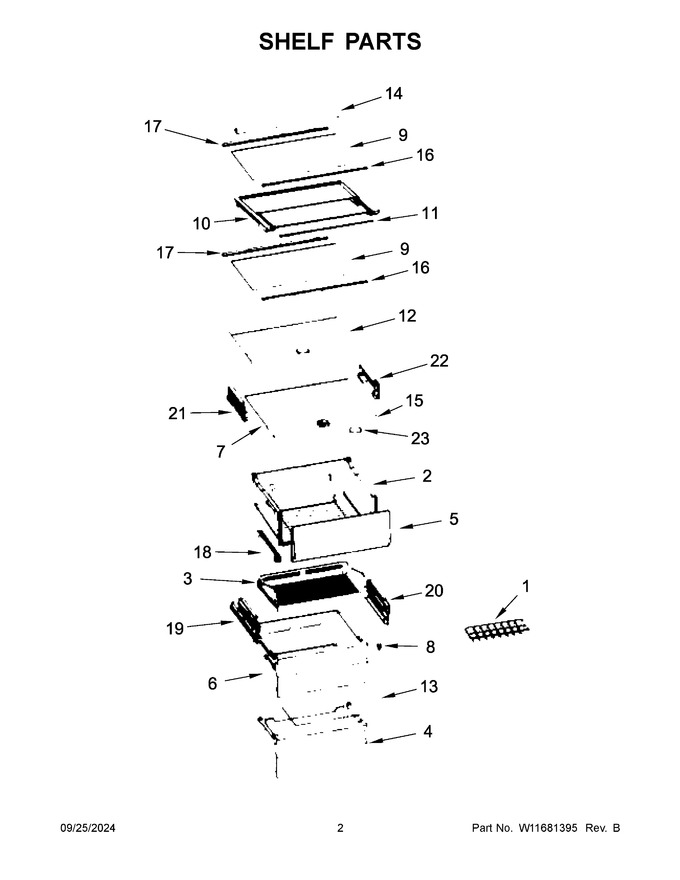

02 - Shelf Parts


03 - Cabinet And Unit Parts


04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676128		Tray, Ice   (Replaces: W11641634)		Appelez-nous	-
2	W11676131		Pan, Crisper   (Replaces: W11481060)				$ 109.74
3	W11676135		Tray, Freezer   (Replaces: W11425557)		Appelez-nous	-
4	W11684993		Bin, Freezer   (Replaces: W11426765)				$ 194.45
5	W11685005		Drawer, Freezer   (Replaces: W11640296)				$ 128.66
6	W11685121		Drawer, Freezer   (Replaces: W11425508)				$ 194.35
7	W11675855		Shelf Assembly, Glass   (Replaces: W11399049)		Appelez-nous	-
8	W11683459		Bumper   (Replaces: W11418435)		Appelez-nous	-
9	W11685122		Assembly, Shelf   (Replaces: W11399137)			Immediately	$ 256.99
10	W11685129		Assembly, Tuck Shelf   (Replaces: W11443008)				$ 256.13
11	W11688407		Trim, Shelf   (Replaces: W11442986)		Appelez-nous	-
12	W11685248		Assembly, Glass Shelf   (Replaces: W11640235)		Appelez-nous	-
13	W11676141		Glass Shelf, Freezer   (Replaces: W11361905)		Appelez-nous	-
14	W11676359		Holder, Bottle   (Replaces: W11288004)				$ 300.17
15	W11676361		Panel, Humidity Control   (Replaces: W11568965)		Appelez-nous	-
16	W11685250		Trim, Shelf   (Replaces: W10733505)			Immediately	$ 82.93
17	W11676447		Rear, Trim Shelf   (Replaces: W11351049)				$ 81.48
18	W11682526		Metal, Rail   (Replaces: W11384906)		Appelez-nous	-
19	W11678795		Slider, Drawer (left Hand)   (Replaces: W11381134)		Appelez-nous	-
20	W11678796		Slider, Drawer (right Hand)   (Replaces: W11378141)		Appelez-nous	-
21	W11683456		Slider, Drawer (left Hand)   (Replaces: W11385159)		Appelez-nous	-
22	W11683457		Slider, Drawer (right Hand)   (Replaces: W11385158)		Appelez-nous	-
23	W11685252		Knob, Humidity   (Replaces: W11446267)		Appelez-nous	-
