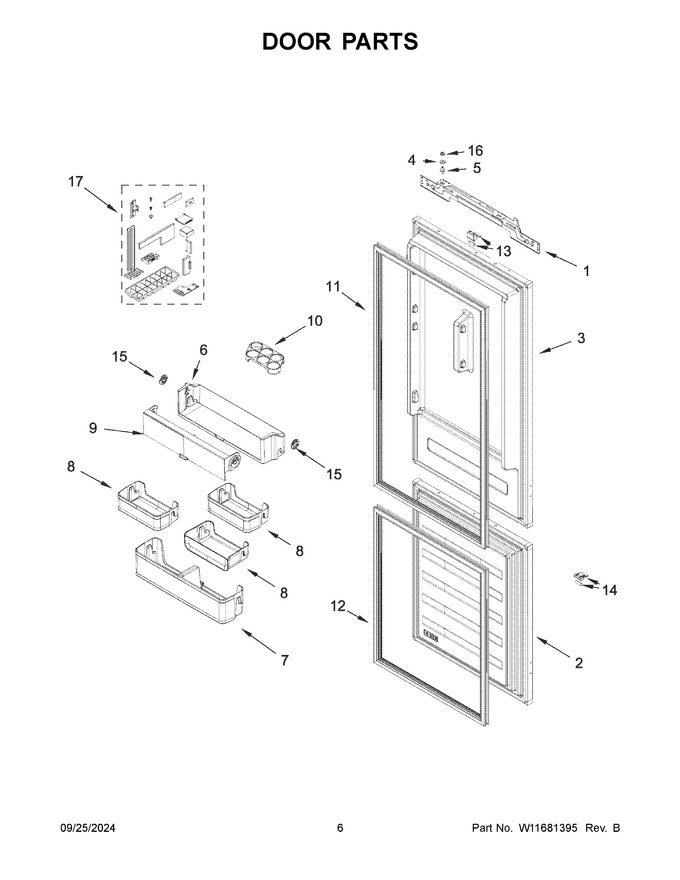

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11726272		Assembly, Bracket   (Replaces: W10701782)				$ 59.81
2	W11681912		Door, Freezer		Appelez-nous	-
3	W11681913		Door, Refrigerator				$ 699.63
4	W11726273		Washer   (Replaces: W10669329)			Immediately	$ 12.87
5	W11726274		Screw   (Replaces: W10648794)				$ 12.92
6	W11685260		Bin, Dairy   (Replaces: W11455609)		Appelez-nous	-
7	W11688409		Bin, Bottle   (Replaces: W11331439)				$ 75.59
8	W11676912		Bin, Half   (Replaces: W11591893)				$ 75.34
9	W11688509		Bin, Front   (Replaces: W11455610)		Appelez-nous	-
10	W11387309		Holder, Egg			Immediately	$ 140.18
11	W11676918		Gasket, Refrigerator   (Replaces: W11345237)		Appelez-nous	-
12	W11676919		Gasket, Freezer   (Replaces: W11345242)		Appelez-nous	-
13	W11688706		Cover, Door Magnet   (Replaces: W11224024)			Immediately	$ 23.17
14	W11678793		Cover, Door Magnet   (Replaces: W11332213)			Immediately	$ 117.32
15	W11678794		Bumper, Compartment   (Replaces: W11184264)		Appelez-nous	-
16	W11788429		Nut, Lock   (Replaces: W10669328)		Appelez-nous	-
17	W11720868		Installation Kit (includes Panel Mounting Hardware, Screw Covers, Ice Tray & Scraper)   (Replaces: W11681942)				$ 160.21

    View Diagram in Separate Window       Print Part List
