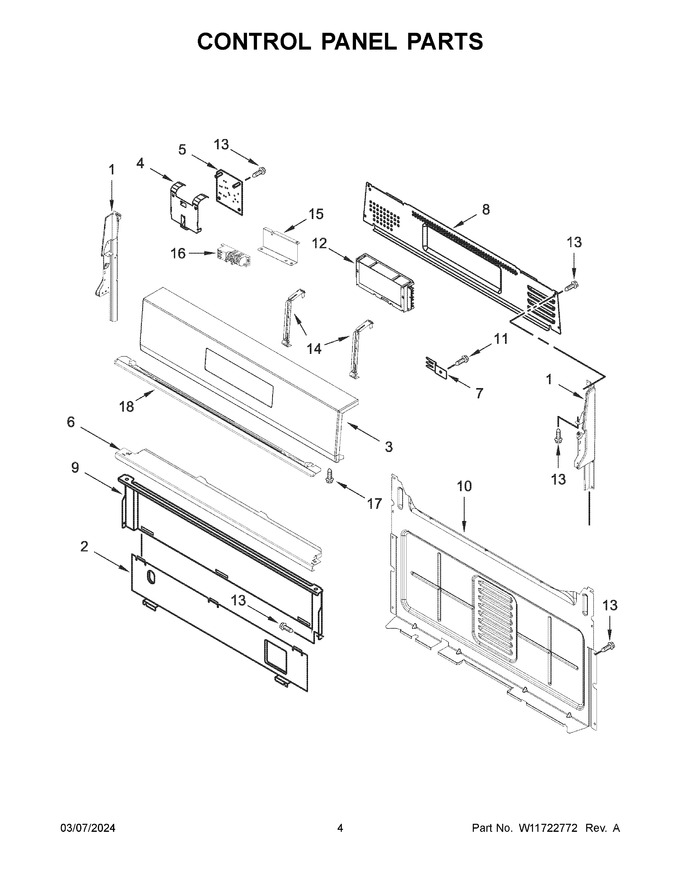

03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	8053505		Shield, Heat				$ 165.89
3	W11707171		Panel, Control (black)   (Replaces: W11385177)		Appelez-nous	-
4	W10762981		Bracket, Mounting				$ 76.42
5	W10898291		Module, Spark   (Replaces: W10818365)			Immediately	$ 365.64
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 167.90
8	W10198745		Cover, Upper				$ 128.90
9	W10192841		Shield, Heat				$ 106.69
10	W11676199		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	W11707254		Control, Range (lcc190) (black)   (Replaces: W11637091)				$ 447.83
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W11713812		Bracket, Control   (Replaces: W11290750)				$ 30.37
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 322.41
17	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
18	W11443964		Bracket, Eye Brow (black)				$ 222.43
18A	W11443963		Bracket, Eye Brow (white)				$ 223.30
1A	W11213292		Endcap (black (right))				$ 71.65
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 104.70
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 104.70
3A	W11714007		Panel, Control (white)   (Replaces: W11385178)		Appelez-nous	-
