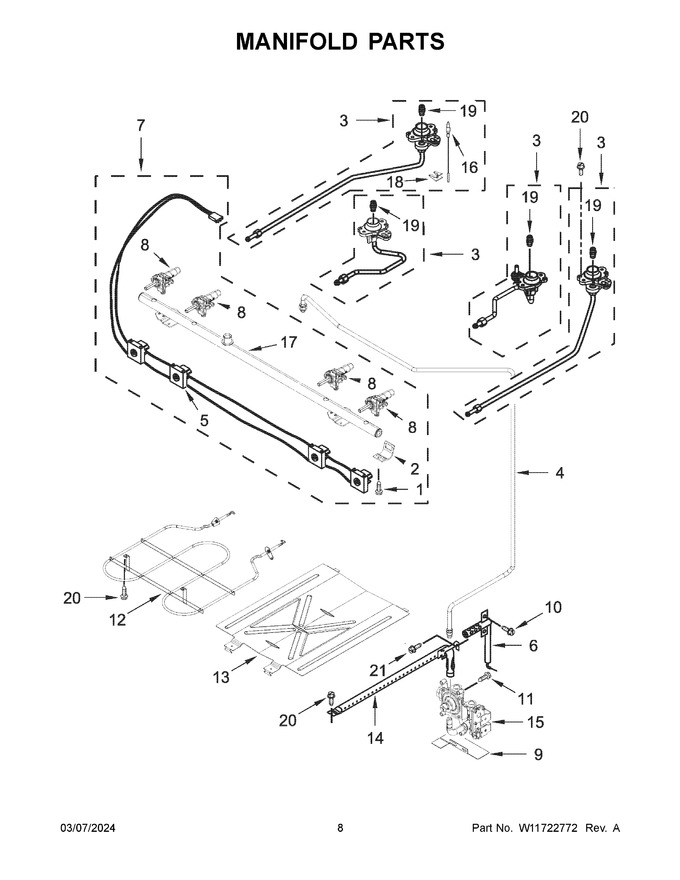

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.97
2	W10949105		Bracket, Saddle Valve				$ 21.67
3	W11562501		Orifice Holder Assembly (15k) (left Front)   (Replaces: W11459257)				$ 97.87
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 146.27
5	W11701337		Harness, Switch   (Replaces: W11537750)		Appelez-nous	-
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
7	W11510001		Manifold Assembly		Appelez-nous	-
8	W11759109		Valve, Gas (left Front And Right Front)   (Replaces: W11509685)		Appelez-nous	-
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 13.59
11	WP3400016		Screw   (Replaces: 3400016)				$ 7.95
12	W11847084		Element, Broiler   (Replaces: W10714060)		Appelez-nous	-
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 241.45
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 215.30
15	W11707169		Regulator   (Replaces: W11620067)		Appelez-nous	-
16	W11453940		Electrode (left Front And Left Rear)   (Replaces: W11428831)				$ 61.39
17	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.95
18	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 11.90
19	W11700316		Orifice (15k) (left Front)   (Replaces: W11485872)				$ 15.93
20	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.02
21	3196265		Screw		Appelez-nous	-
16A	W11453920		Electrode (right Front And Right Rear)   (Replaces: W11428858)				$ 61.29
19A	W11485873		Orifice (9.5k) (left Rear)				$ 65.70
19B	W11428753		Orifice (15k) (right Front)			Immediately	$ 79.30
19C	W11712434		Orifice (5k) (right Rear)   (Replaces: W11485871)				$ 15.93
3A	W11557815		Orifice Holder Assembly (9.5k) (left Rear)   (Replaces: W11459258)		Appelez-nous	-
3B	W11557816		Orifice Holder Assembly (15k) (right Front)   (Replaces: W11459260)				$ 101.60
3C	W11557817		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11459259)		Appelez-nous	-
8A	W11509686		Valve, Gas (left Rear)		Appelez-nous	-
8B	W11509687		Valve,gas (right Rear)				$ 95.32
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 49.63
NI	W11569688		Lp Conversion Kit   (Replaces: W11489400)				$ 70.31

    View Diagram in Separate Window       Print Part List
