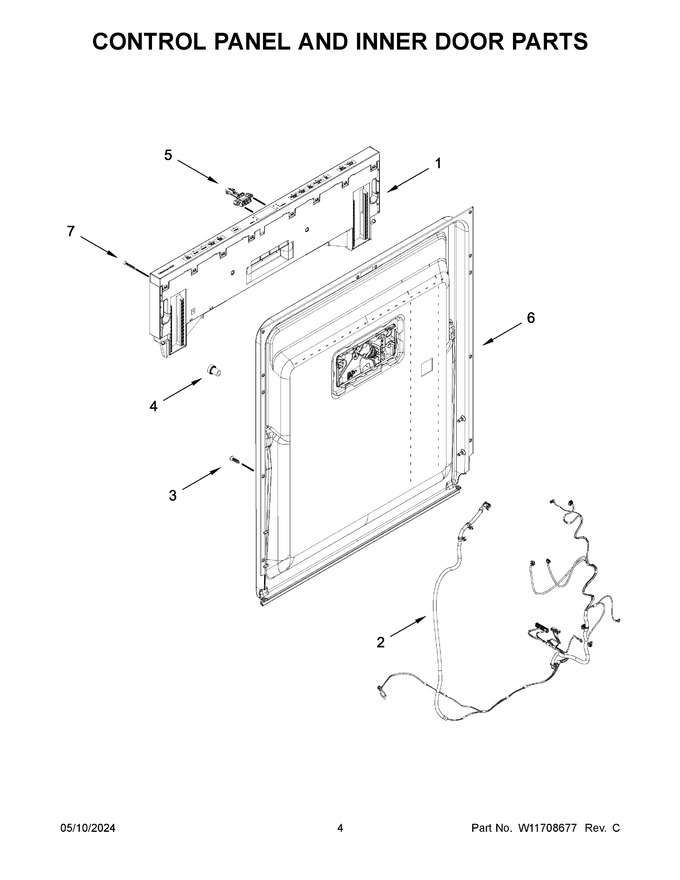

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11729112 | Console Assembly (includes Insert) (black) (Replaces: W11575653) |
|
$ 450.68 | |||||
| 2 | W11693836 | Wiring Harness, Inner Door (Replaces: W11608932) |
|
- | |||||
| 3 | W11729111 | Screw (Replaces: W10941960) |
|
$ 14.71 | |||||
| 4 | W11699547 | Bushing, Shouldered (Replaces: W10944891) |
|
$ 480.01 | |||||
| 5 | W11412299 | Latch Assembly (includes Switch) (Replaces: W11091934) |
|
Immediately | $ 29.70 | ||||
| 6 | W11723342 | Inner Door Assembly (includes Soap Dispenser) (Replaces: W11715716) |
|
$ 581.48 | |||||
| 7 | W11729110 | Screw (Replaces: W11381263) |
|
- |
