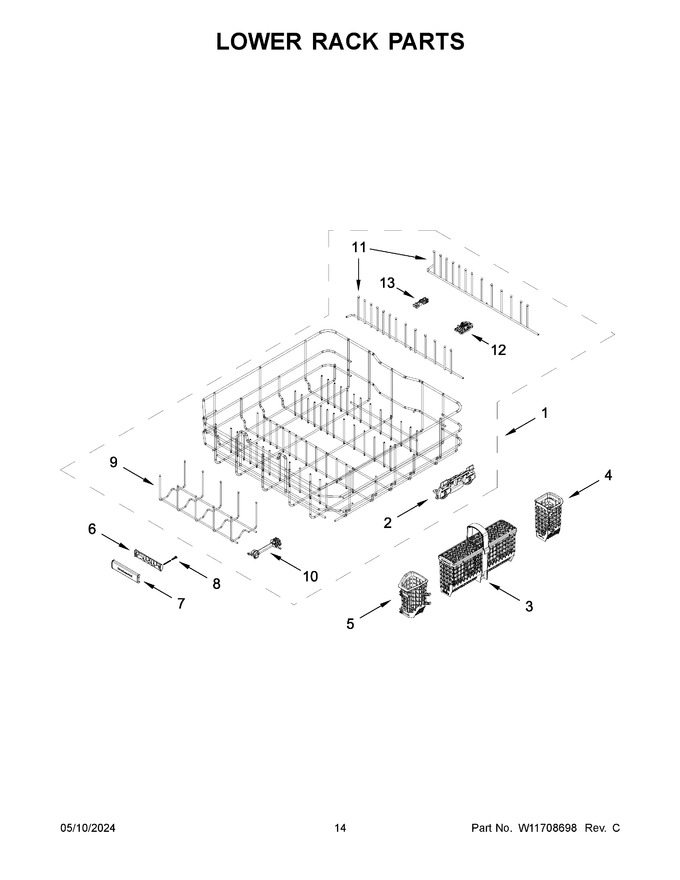

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11699008		Dishrack, Lower   (Replaces: W11626547)			Immediately	$ 244.74
2	W11699018		Wheel & Transport Assembly   (Replaces: W11543650)		Appelez-nous	-
3	W11699037		Silverware Basket Assembly   (Replaces: W11629677)		Appelez-nous	-
4	W11698135		Utensil Basket (rear)   (Replaces: W11634637)		Appelez-nous	-
5	W11698132		Utensil Basket (front)   (Replaces: W11634635)		Appelez-nous	-
6	W11699021		Handle, Rear   (Replaces: W11590235)		Appelez-nous	-
7	W11699007		Handle, Front   (Replaces: W11590247)		Appelez-nous	-
8	W11698986		Screw   (Replaces: W11337336)				$ 87.74
9	W11690833		Sliding Tine, Bowl   (Replaces: W11543710)		Appelez-nous	-
10	W11690835		Clip, Sliding Tine   (Replaces: W11523448)		Appelez-nous	-
11	W11690836		Tine, Folddown (rear)   (Replaces: W11389056)			Immediately	$ 48.72
12	W11699016		Clip, Positioning   (Replaces: W11545635)			Immediately	$ 25.50
13	W11699017		Clip, Retainer   (Replaces: W11545636)			Immediately	$ 24.93
11A	W11690837		Tine, Folddown (front)   (Replaces: W11385226)				$ 34.41

    View Diagram in Separate Window       Print Part List
