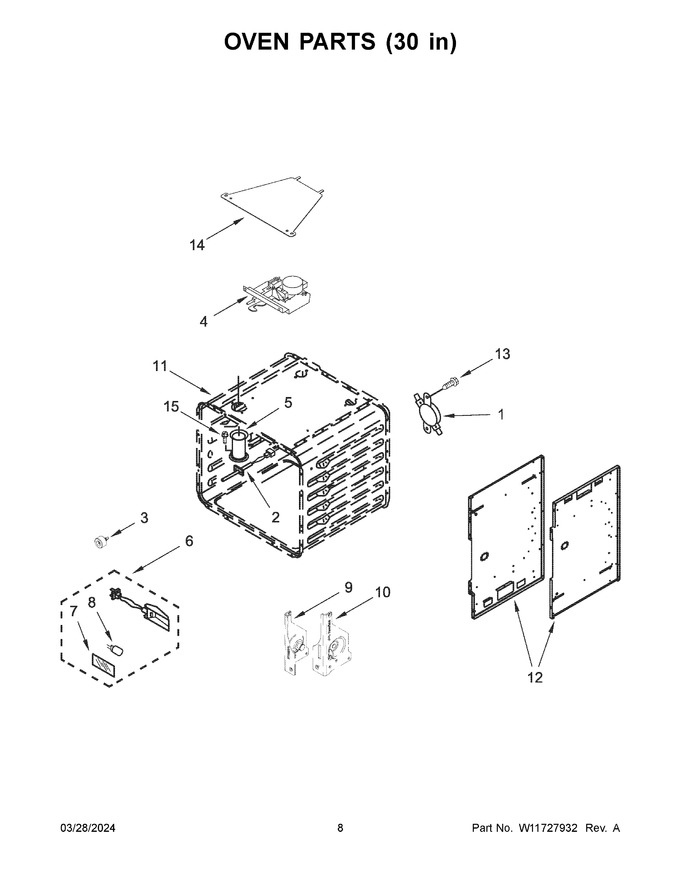

05 - Oven Parts (30 In)


06 - Oven Parts (18 In)


07 - Venting Parts


08 - Oven Door Parts (30 In)


09 - Oven Door Parts (18 In)


10 - Internal Oven Parts (30 In)


11 - Internal Oven Parts (18 In)


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
5	W11318343		Tube, Vent   (Replaces: W11290663)				$ 105.43
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	ARI085D97BB298C0C5517612CE6B83B6134		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	ARI085D97BB298C0C5517612CE6B83B6134		Receiver, Hinge (not Serviced)		Appelez-nous	-
11	ARI0E41E73880FF530FBBE29D9D6A419FE4		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11320145		Chassis, Side (left)   (Replaces: W11102297)				$ 254.37
13	7101P42660		Screw		Appelez-nous	-
14	W10160858		Cover, Latch				$ 76.94
15	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
12A	W11320144		Chassis, Side (right)   (Replaces: W11102296)				$ 246.66
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
NI	W11661177		Insulation, Wrap (30 In)   (Replaces: W10282810)				$ 162.50
NI	W11553224		Insulation, Back, (30 In)   (Replaces: W10282818)				$ 107.63
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
