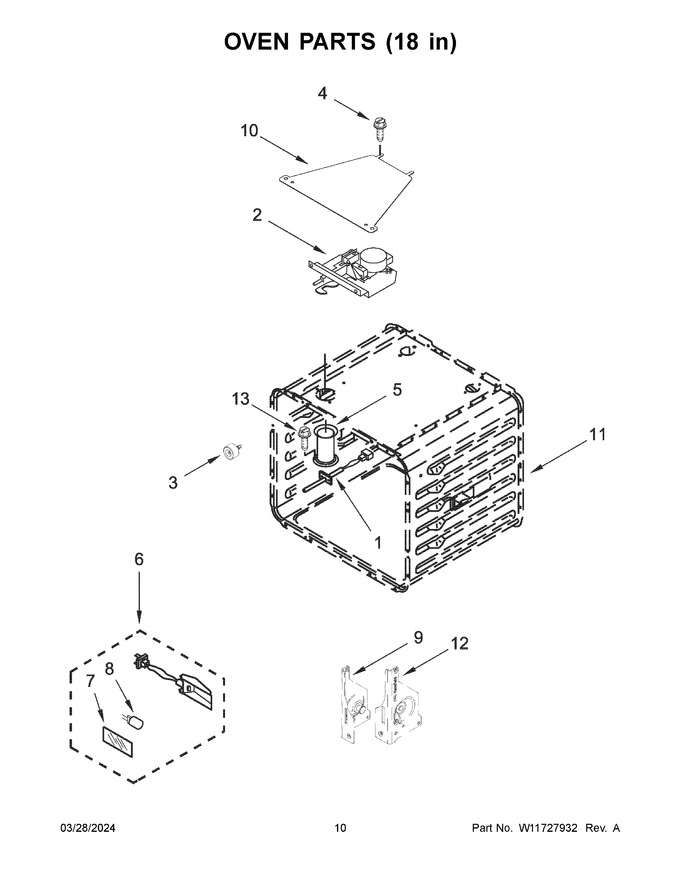

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
4	7101P42660		Screw		Appelez-nous	-
5	W10288078		Tube, Vent				$ 116.85
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	ARI085D97BB298C0C5517612CE6B83B6134		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 76.94
11	ARI0E41E73880FF530FBBE29D9D6A419FE4		Liner, Oven (not Serviced)		Appelez-nous	-
12	ARI085D97BB298C0C5517612CE6B83B6134		Receiver, Hinge (not Serviced)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11688744		Insulation, Wrap (18 In)   (Replaces: W10282820)		Appelez-nous	-
NI	W11688563		Insulation, Back (18 In)   (Replaces: W11529898)		Appelez-nous	-
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
