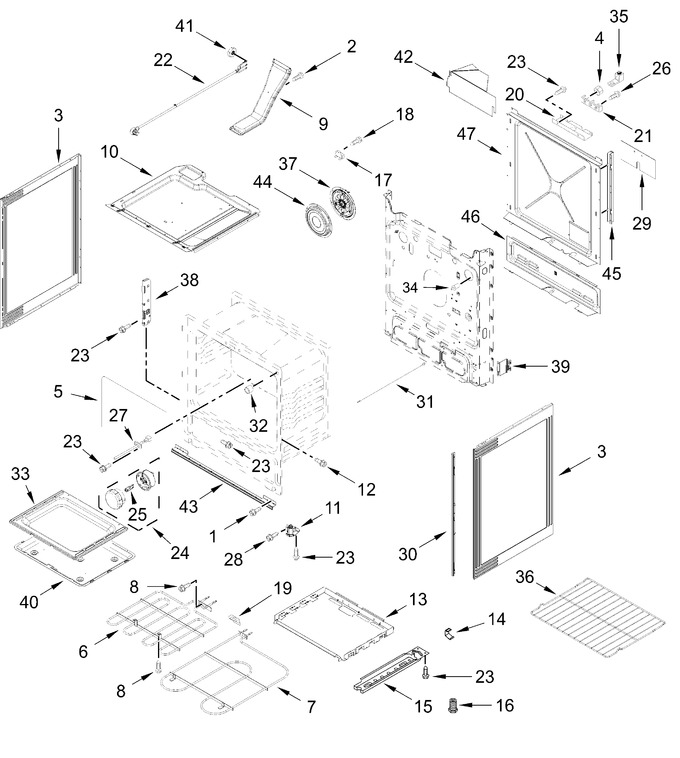

Chassis Parts


Cooktop And Duct Parts


Door Parts


Drawer Parts


Induction Assembly Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11169708		Screw   (Replaces: 3196560)				$ 13.36
2	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
3	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 178.50
4	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 8.19
5	W11562931		Gasket, Door   (Replaces: W11491752)			Immediately	$ 87.76
6	W11238400		Element, Broil   (Replaces: W10544952)			Immediately	$ 118.18
7	W10779716		Element, Bake   (Replaces: W10774342)			Immediately	$ 61.45
8	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
9	W11122085		Flue, Assembly				$ 118.38
10	W10289168		Box, Burner Si				$ 204.90
11	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
12	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
13	W10541959		Shield, Bake			Immediately	$ 168.98
14	W10137382		Clip, Panel			Immediately	$ 48.42
15	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 62.66
16	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 8.24
17	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 50.10
18	3196172		Screw			Immediately	$ 13.47
19	W10035900		Support, Oven Bottom				$ 14.36
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 30.13
22	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 72.99
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
24	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 40.75
25	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
26	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
27	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
29	W10655441		Shield, Power Cord				$ 144.36
30	W11510561		Barrier Rail, Rubber (front Left)				$ 74.87
31	W11370463		Rod, Door Switch   (Replaces: W10273192)			Immediately	$ 66.87
32	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 56.06
33	W10777210		Bottom, Oven   (Replaces: W10774446)			Immediately	$ 164.22
34	W11620712		Switch, Door   (Replaces: W11511828)				$ 46.31
35	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
36	WPW10531060		Rack, Oven   (Replaces: W10531060)			Immediately	$ 122.16
37	W11441001		Convection Assembly   (Replaces: W11353926)			Immediately	$ 136.09
38	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
39	W10273002		Bracket, Oven Support				$ 76.34
40	W11379357		Bake Pan			Immediately	$ 82.86
41	7103P02760		Nut		Appelez-nous	-
42	W10818358		Shield, Wire		Appelez-nous	-
43	W11686853		Bracket, Front Frame   (Replaces: W11620269)		Appelez-nous	-
44	WPW10346154		Cover, Convection   (Replaces: W10346154)			Immediately	$ 77.67
45	W10162241		Channel, Rear				$ 37.56
46	W10162248		Cover, Wire				$ 148.19
47	W11379354		Cover, Back			Immediately	$ 77.79
	7111P01760		Clamp, Wire		Appelez-nous	-
	W11688815		Insulation, Main Back   (Replaces: W10655490)				$ 79.94
	4820F01559		Insulation, Strap		Appelez-nous	-
	W11688730		Insulation, Bottom   (Replaces: W10575374)			Immediately	$ 79.98
	W11688567		Insulation, Wrap   (Replaces: W10289173)				$ 128.01
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11510562		Barrier Rail, Rubber (front Right)				$ 74.87
	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 62.66
