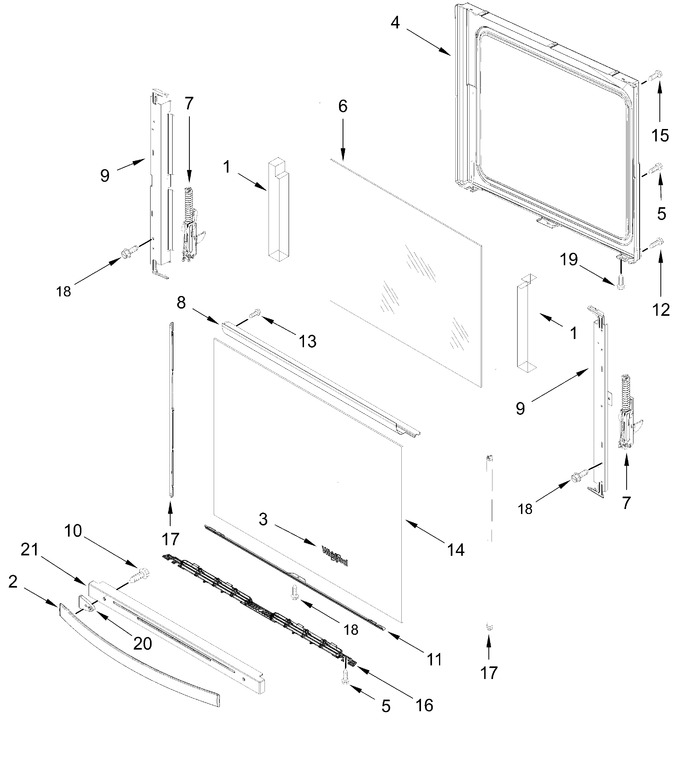

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 27.02 | |||||
| 2 | W11110500 | Door, Handle (black Stainless) (Replaces: W10903342) |
|
$ 195.52 | |||||
| 3 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 7 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 8 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 9 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 11 | W10334031 | Trim, Door Bottom (black) |
|
$ 77.86 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 13 | W10896982 | Screw (Replaces: W10477496) |
|
$ 8.40 | |||||
| 14 | W11730255 | Outer Door, Assembly (black) (Replaces: W11693008) |
|
- | |||||
| 15 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 16 | W11726954 | Door, Bottom Cover (Replaces: W11440160) |
|
$ 56.73 | |||||
| 17 | W10334004 | Trim, Door Side (black) |
|
$ 233.76 | |||||
| 18 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 19 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 20 | W10917796 | Standoff, Handle (black) |
|
$ 72.01 | |||||
| 21 | W11106938 | Door, Vent Trim (black) (Replaces: W11691763) |
|
$ 142.25 |
