View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

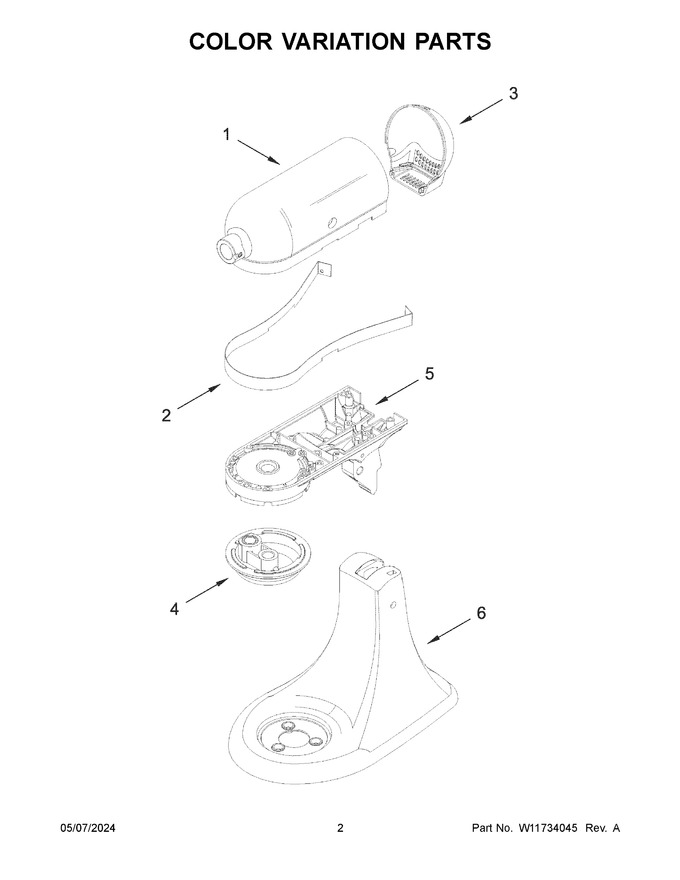

| 1 | W11734420 | Motor Housing (evergreen) (Replaces: W11636272) |
|
- | |||||
| 2 | W11734421 | Trim Band (enlightened Forest) (Replaces: W11631452) |
|
- | |||||
| 3 | W11636274 | End Cover (evergreen) |
|
- | |||||
| 4 | W11640898 | Planetary (evergreen) |
|
- | |||||
| 5 | W11636267 | Lower Gearcase (evergreen) |
|
- | |||||
| 6 | W11636261 | Pedestal (evergreen) |
|
- |
