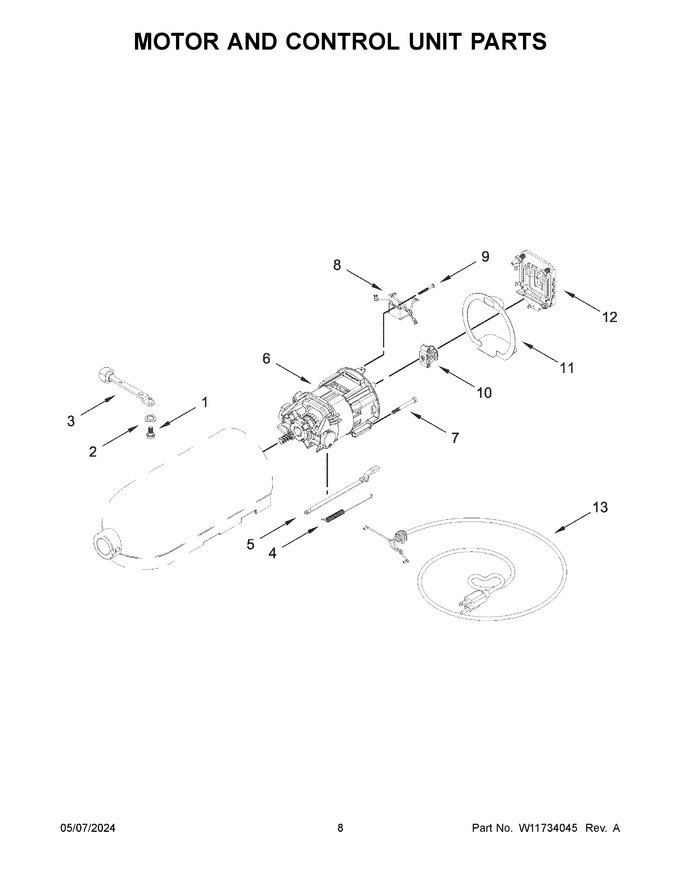

05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 6011-006971 | Screw (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 2 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 3 | W11734437 | Lever, Speed Control Assembly (forbidden Forest) (Replaces: W11627803) |
|
$ 9.29 | |||||
| 4 | WP3183680 | Spring, Control Plate (Replaces: 3183680) |
|
$ 4.79 | |||||
| 5 | W11557271 | Link, Speed And Cam Assembly (Replaces: W11435668) |
|
Immediately | $ 8.47 | ||||
| 6 | W11680505 | Motor Assembly (Replaces: W11610691) |
|
- | |||||
| 7 | W11678787 | Screw, Motor Mounting (Replaces: W11573199) |
|
- | |||||
| 8 | W11174552 | Phase Control, 230 Volt (Replaces: W10911442) |
|
$ 16.31 | |||||
| 9 | W11084238 | Screw (Replaces: W10068260) |
|
- | |||||
| 10 | WPW10330804 | Governor Assembly (Replaces: W10330804) |
|
Immediately | $ 16.39 | ||||
| 11 | 2407751 | Seal, End |
|
- | |||||
| 12 | WPW10119326 | Control Plate Assembly (Replaces: W10119326) |
|
Immediately | $ 17.43 | ||||
| 13 | W11262935 | Cord, Power (black) (Replaces: W11103222) |
|
- |
