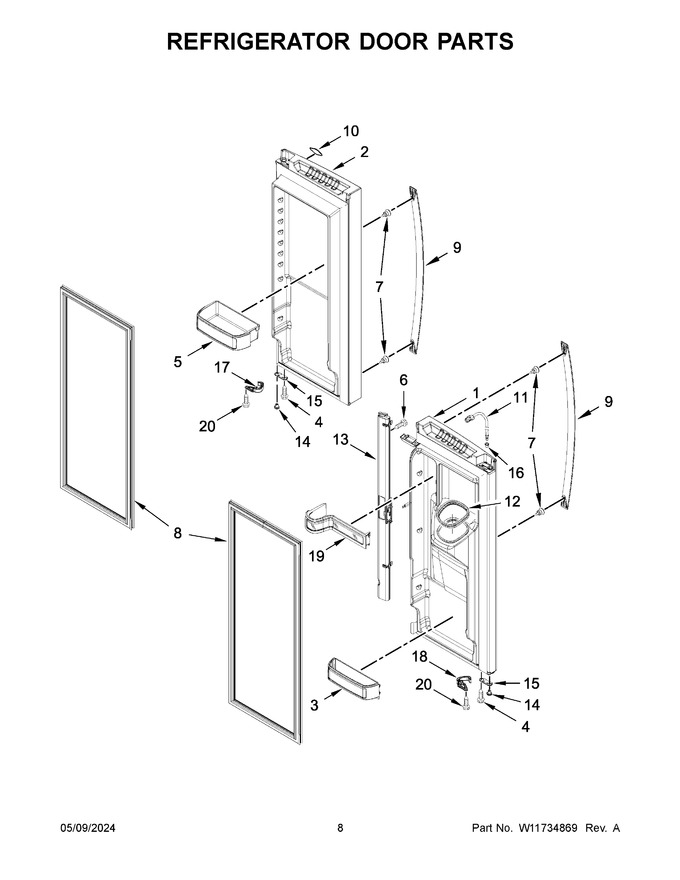

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11104476 | Door, Refrigerator Left Hand (black Stainless) (Replaces: W11022747) |
|
$ 1,073.86 | |||||
| 2 | W11104465 | Door, Refrigerator Right Hand (black Stainless) (Replaces: W11022757) |
|
$ 1,062.26 | |||||
| 3 | W11379148 | Bucket, Small (Replaces: W10355270) |
|
Immediately | $ 156.75 | ||||
| 4 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 5 | W11706640 | Bucket, Gallon (Replaces: W11672902) |
|
$ 75.11 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 8 | W10830274 | Gasket, Door (grey) |
|
Immediately | $ 205.74 | ||||
| 9 | W11045128 | Handle, Door (black Stainless) (Replaces: W10918272) |
|
Immediately | $ 181.37 | ||||
| 10 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 83.10 | ||||
| 11 | W11677733 | Waterline, Door (Replaces: W11431179) |
|
$ 81.70 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 31.20 | ||||
| 13 | W10311758 | Mullion, Door (black) |
|
$ 125.37 | |||||
| 14 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 15 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 17 | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 16.77 | |||||
| 18 | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 16.80 | |||||
| 19 | W10355269 | Bucket, Upper |
|
$ 74.80 | |||||
| 20 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.95 |
