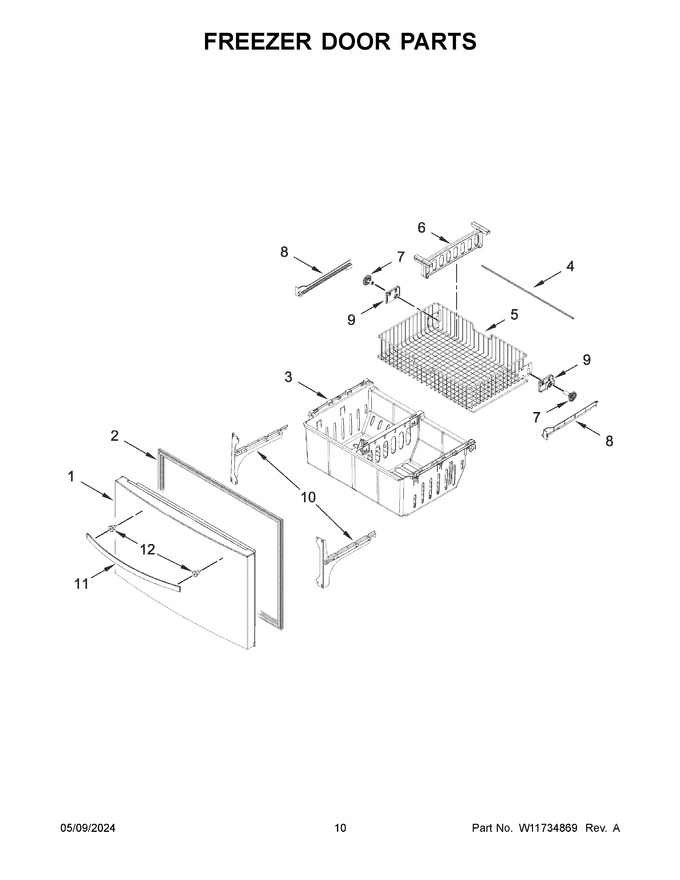

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11104489 | Door, Freezer (black Stainless) (Replaces: W10920749) |
|
$ 1,305.04 | |||||
| 2 | WPW10714545 | Gasket, Door (grey) (Replaces: W10714545) |
|
$ 308.19 | |||||
| 3 | WPW10293682 | Bin, Lower (Replaces: W10293682) |
|
$ 172.55 | |||||
| 4 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 30.84 | |||||
| 5 | W11218042 | Basket, Upper (Replaces: W11115237) |
|
$ 193.74 | |||||
| 6 | W10146439 | Divider, Upper Basket |
|
$ 31.10 | |||||
| 7 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 30.88 | ||||
| 8 | W11489993 | Rack, Side (left Hand) (Replaces: W11309374) |
|
$ 22.34 | |||||
| 9 | W10348259 | Mount, Gear (left Hand) |
|
$ 85.59 | |||||
| 10 | WPW10330991 | Bracket, Door Slide (left Hand) (Replaces: W10330991) |
|
$ 156.49 | |||||
| 11 | W11125509 | Handle, Door (black Stainless) (Replaces: W11101977) |
|
Immediately | $ 181.37 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 10A | WPW10330993 | Bracket, Door Slide (right Hand) (Replaces: W10330993) |
|
$ 158.18 | |||||
| 7A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 31.20 | ||||
| 8A | W11489994 | Rack, Side (right Hand) (Replaces: W11309377) |
|
$ 22.34 | |||||
| 9A | W10348260 | Mount, Gear (right Hand) |
|
$ 85.62 |
