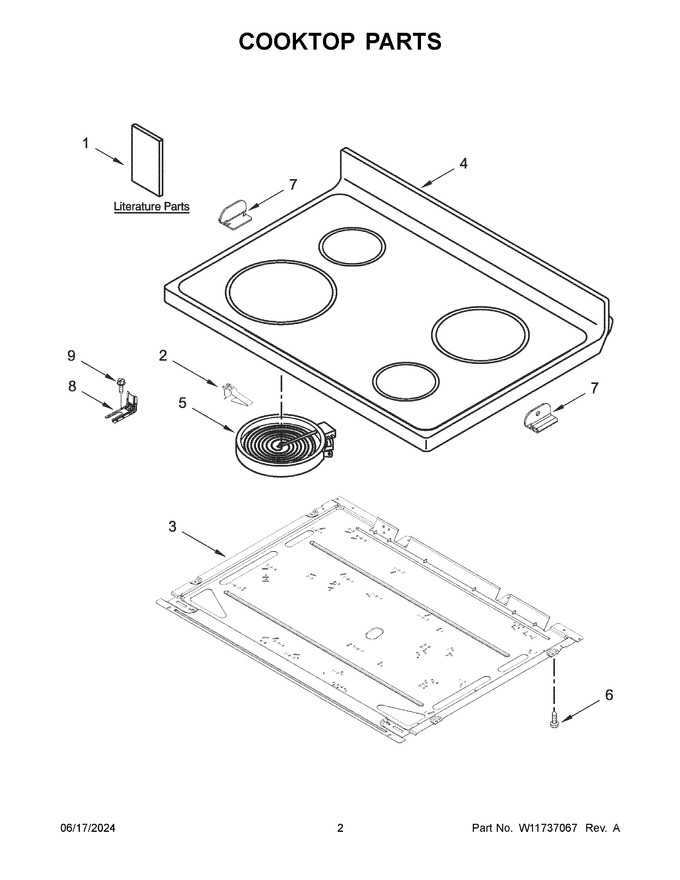

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11469631 | Quick Start Guide |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 4 | W10908094 | Cooktop (white) (Replaces: W10853443) |
|
$ 732.26 | |||||
| 5 | W11517959 | Element (3000 And 1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 1A | W11509598 | User Instructions |
|
- | |||||
| 1B | W11393929 | Sheet, Tech |
|
- | |||||
| 5A | W11171119 | Element (1200w) (left Rear And Right Front) (Replaces: W10248261) |
|
Immediately | $ 182.23 | ||||
| 5B | WP8273993 | Element (1800w) (right Rear) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 7A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 34.76 | ||||
| NI | W11750777 | Harness, Main (Replaces: W11452623) |
|
$ 211.98 | |||||
| NI | W11675846 | Harness, Cooktop (left) (Replaces: W11134603) |
|
$ 39.67 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
