SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts

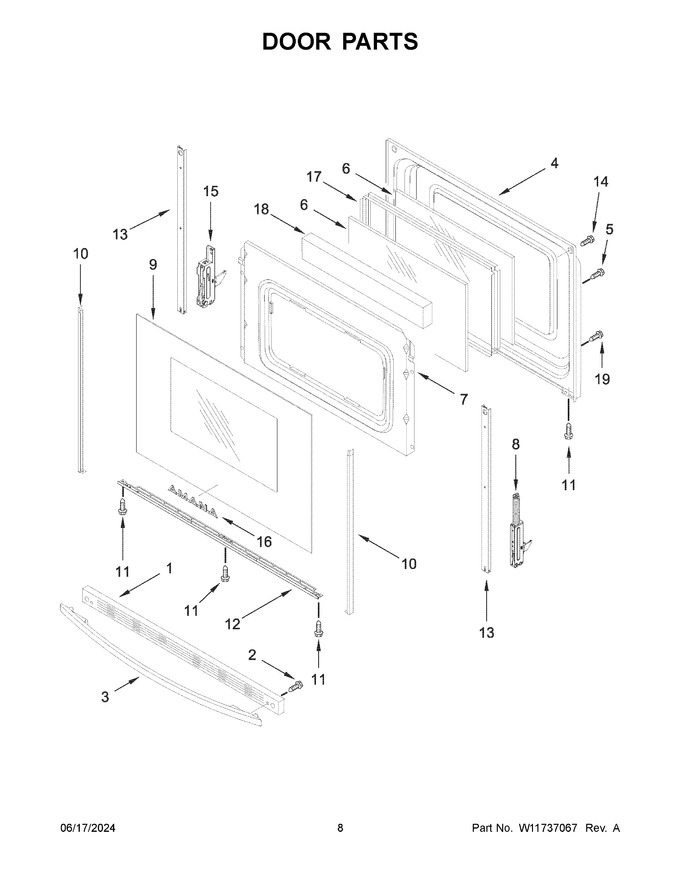

05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817433		Trim, Top (white)   (Replaces: W10310920)			Immediately	$ 103.27
2	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
3	W10817434		Handle, Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 233.31
8	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 72.76
9	W10904906		Glass, Outer (white)   (Replaces: W10851723)				$ 228.32
10	WP8523172		Trim, Door (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	W11594186		Trim, Bottom (white)   (Replaces: W11444042)			Immediately	$ 61.37
13	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
14	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
15	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
16	W10849465		Badge (white)			Immediately	$ 82.81
17	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
18	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
19	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
10A	WP8523166		Trim, Door (white (right))   (Replaces: 8523166)			Immediately	$ 84.23

    View Diagram in Separate Window       Print Part List
