SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


10 - Optional Parts (not Included)

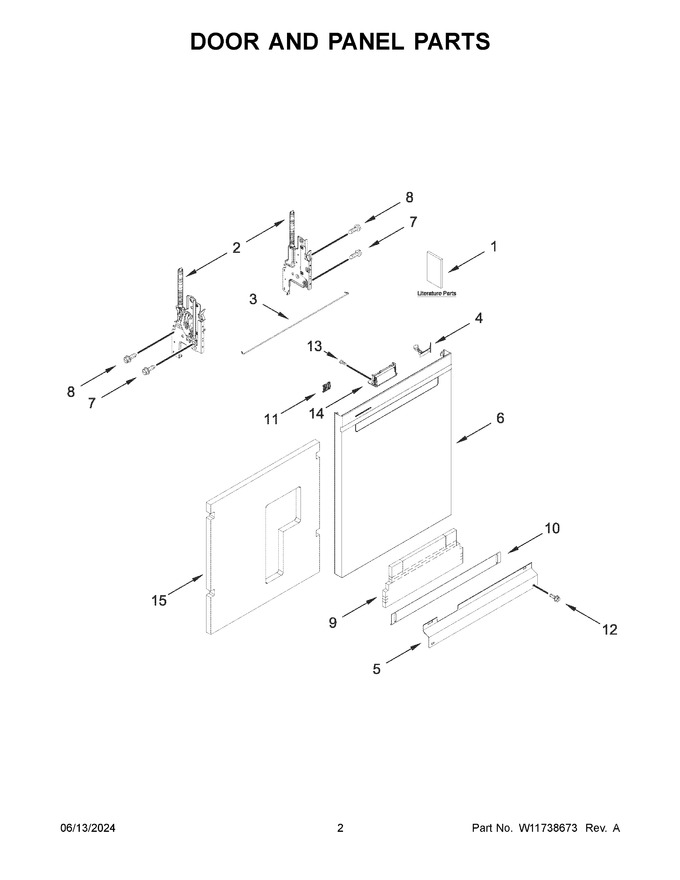

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11323304		Owners Manual		Appelez-nous	-
2	W11766666		Arm, Hinge (left Hand)   (Replaces: W11662392)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	W11102920		Light Pipe				$ 68.17
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11461682		Panel, Front (includes 4, 11, 14 & 16) (stainless)   (Replaces: W11233307)			Immediately	$ 455.28
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11467733)			Immediately	$ 32.90
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11551775		Screw, Black   (Replaces: W11438978)			Immediately	$ 15.43
13	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
14	W10896302		Pocket, Handle (gray)		Appelez-nous	-
15	W11778318		Insulation, Front Panel   (Replaces: W10919859)				$ 23.86
1A	W11730657		Energy Guide		Appelez-nous	-
1B	W11366143		Tech Sheet		Appelez-nous	-
2A	W11766665		Arm, Hinge (right Hand)   (Replaces: W11662370)			Immediately	$ 59.16

    View Diagram in Separate Window       Print Part List
