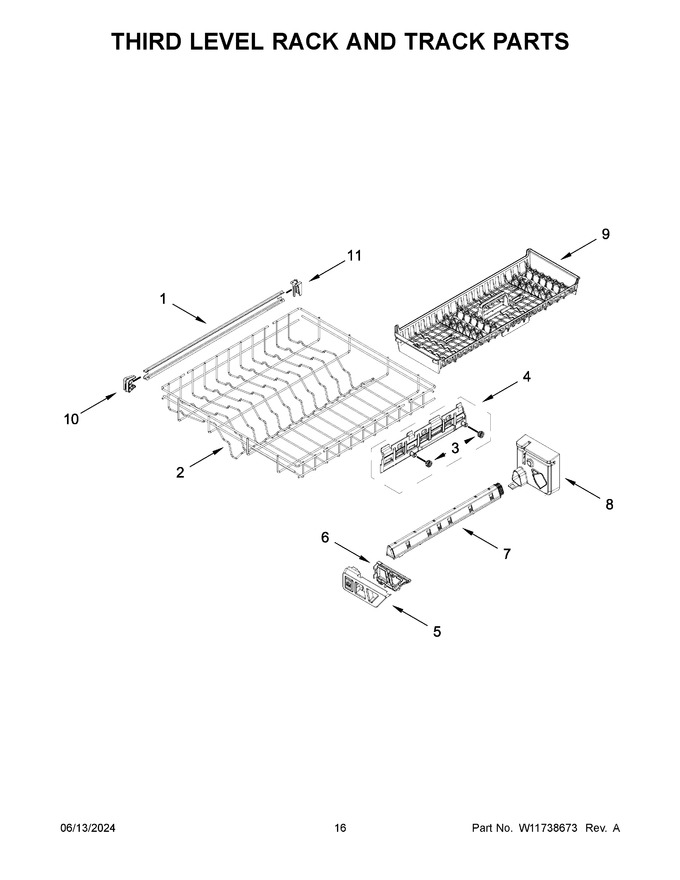

1	W11561204		Track, Dishrack   (Replaces: W11441109)			Immediately	$ 38.56
2	W11127770		Rack, Third Level				$ 139.88
3	W11568789		Wheel   (Replaces: W11048219)			Immediately	$ 15.92
4	W11662340		Mount Assembly, Third Level (left Hand)   (Replaces: W11231350)			Immediately	$ 24.73
5	W11175556		Manifold, Front		Appelez-nous	-
6	W11324430		Manifold, Rear		Appelez-nous	-
7	W11175552		Tube, Wash				$ 123.45
8	W11324432		Manifold Assembly		Appelez-nous	-
9	W11820595		Silverware Tray   (Replaces: W11087823)				$ 68.12
10	W11545307		Track Stop, Front   (Replaces: W11084874)			Immediately	$ 15.45
11	W11579392		Track Stop, Rear   (Replaces: W11084872)			Immediately	$ 20.41
4A	W11675848		Mount Assembly, Third Level (right Hand)   (Replaces: W11231352)				$ 24.74
