SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

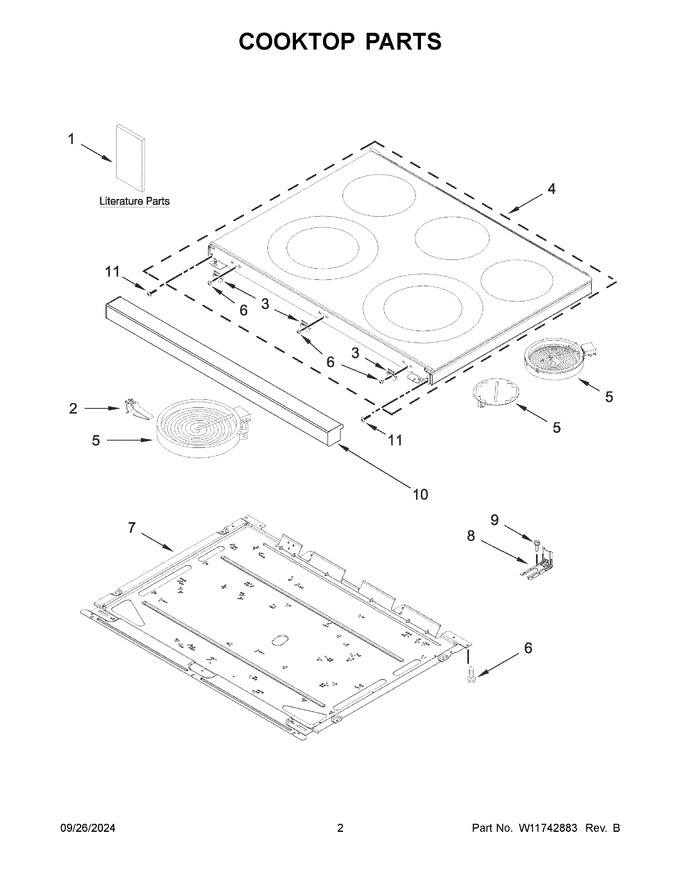

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11638798		Quick Start Guide		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 11.52
4	W11730433		Cooktop (black (includes, Cooktop Bracket))   (Replaces: W11629534)				$ 482.51
5	W11517959		Element (3000w Dual) (left Front)   (Replaces: W11282542)			Immediately	$ 134.44
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11730339		Bullnose (black Stainless)   (Replaces: W11353381)				$ 384.59
11	W11684512		Screw   (Replaces: 3400080)				$ 14.81
10A	W11730060		Bullnose (stainless)   (Replaces: W11353382)			Immediately	$ 391.43
1A	W11640146		Owner's Manual		Appelez-nous	-
1B	W11639163		Tech Sheet		Appelez-nous	-
5A	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
5B	W10823727		Element (3000w) (right Front)   (Replaces: W10711900)			Immediately	$ 342.63
5C	W11706247		Element, Warm Zone (center)   (Replaces: W11668631)			Immediately	$ 133.94
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11737120		Harness, Cooktop   (Replaces: W11706379)				$ 151.32
NI	W11729984		Harness, Main   (Replaces: W11696452)				$ 320.42
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
