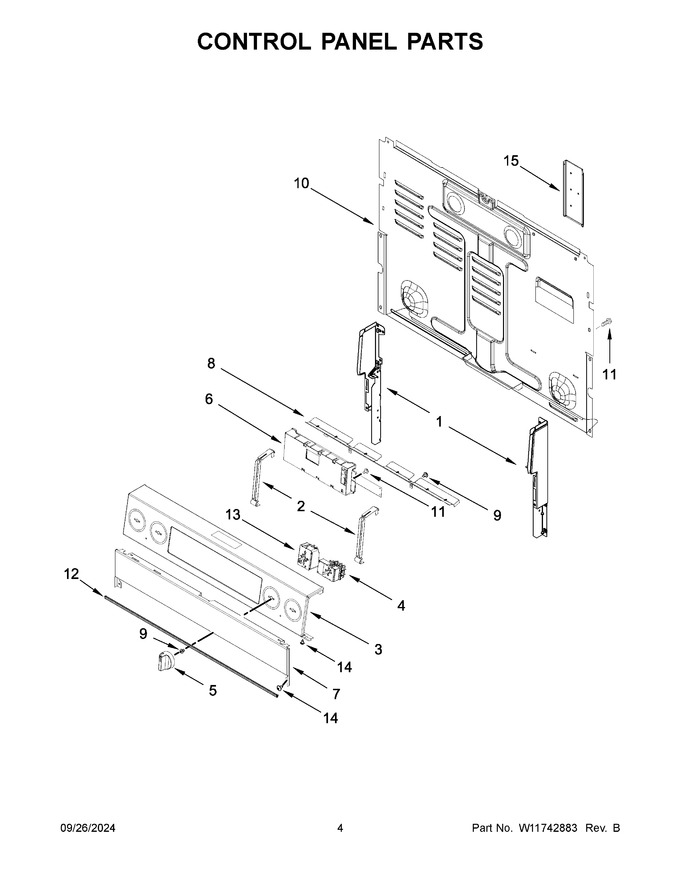

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730342		Endcap (black (left))   (Replaces: W11327041)				$ 117.41
2	W11713812		Bracket, Control   (Replaces: W11290750)				$ 30.37
3	W11730338		Console, Assembly (black Stainless)   (Replaces: W11352187)				$ 233.55
4	W10857622		Switch, Infinite (left Front And Right Front)   (Replaces: W10437092)			Immediately	$ 211.69
5	W11730542		Knob (black Stainless)   (Replaces: W11621540)			Immediately	$ 42.29
6	W11757145		Control, Electronic (lcx) (black)   (Replaces: W11652497)			Immediately	$ 419.29
7	W11728260		Panel, Lower (black)   (Replaces: W11625413)				$ 122.82
8	W11730262		Shield, Heat   (Replaces: W11363806)				$ 87.08
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	W11726751		Cover, Upper Rear   (Replaces: W11393668)				$ 131.99
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
12	W11728258		Gasket, Lower Panel   (Replaces: W11643797)				$ 58.00
13	W10911303		Switch, Infinite (right Rear And Left Rear)   (Replaces: W10578768)			Immediately	$ 104.64
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
15	W11729912		Cover, Rear Flue   (Replaces: W11394231)			Immediately	$ 106.53
1A	W11730343		Endcap (black (right))   (Replaces: W11327043)				$ 117.41
3A	W11730047		Panel, Console (stainless)   (Replaces: W11299261)			Immediately	$ 232.21
5A	W11730048		Knob (stainless)   (Replaces: W11621738)			Immediately	$ 42.23
