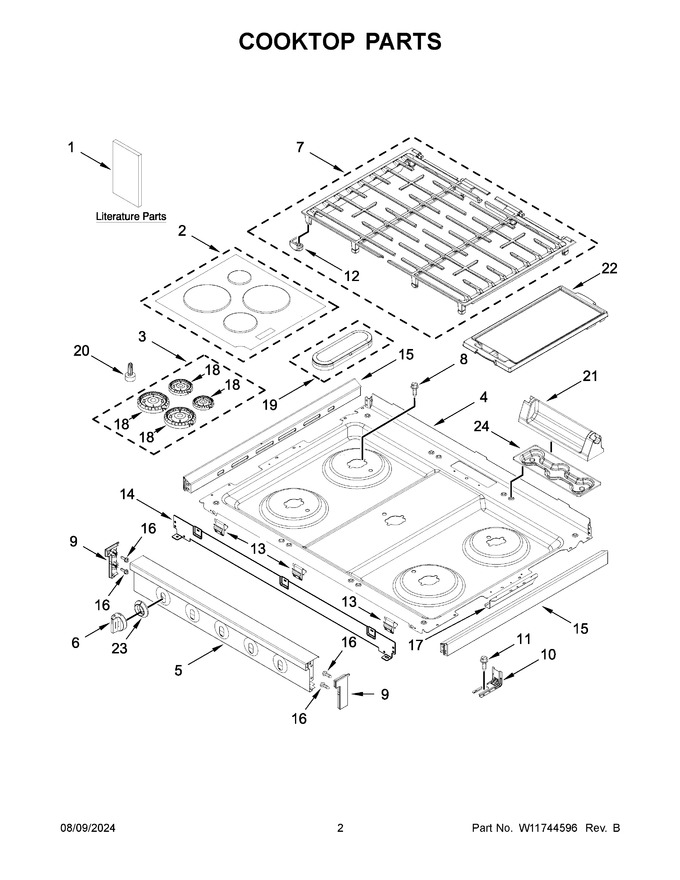

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11642081		Owner's Manual		Appelez-nous	-
2	W11605759		Burner Cap Kit (black (set Of 4))   (Replaces: W11498499)			Immediately	$ 75.35
3	W11671543		Burner Kit (set Of 4)   (Replaces: W11600788)				$ 129.17
4	W11730418		Cooktop (black)   (Replaces: W11279795)				$ 374.35
5	W11730316		Panel, Manifold (black)   (Replaces: W11393099)		Appelez-nous	-
6	W11730481		Knob, Control (black)   (Replaces: W11632048)		Appelez-nous	-
7	W11728633		Grate Kit (black (set Of 2))   (Replaces: W11622335)				$ 347.75
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	W11730317		Panel, Manifold End Cap (black (left))   (Replaces: W11361195)		Appelez-nous	-
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 13.71
13	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
14	W11750421		Cooktop, Front Bracket   (Replaces: W11295628)		Appelez-nous	-
15	W11729931		Cooktop, Frame   (Replaces: W11367962)				$ 171.56
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
17	W11728390		Spark, Module Bracket   (Replaces: W11366598)		Appelez-nous	-
18	W11531096		Flame Spreader (left Front And Right Front)   (Replaces: W11352193)				$ 81.92
19	W11729926		Oval Flame Spreader Kit (center)   (Replaces: W11635774)				$ 180.88
20	8016P02260		Glide, Main Top		Appelez-nous	-
21	ARI563D9D6089659C637E568300AAF28844		Hinge, Grate (not Serviced)		Appelez-nous	-
22	W11728634		Griddle, Cooktop   (Replaces: W11640437)				$ 106.55
23	W11730488		Bezel (black)   (Replaces: W11632250)		Appelez-nous	-
24	W11729925		Hinge, Spacer   (Replaces: W11623712)			Immediately	$ 16.94
18A	W11531097		Flame Spreader (left Rear)   (Replaces: W11352195)				$ 81.15
18B	W11531098		Flame Spreader (right Rear)   (Replaces: W11352197)				$ 80.72
1A	W11639170		Tech Sheet		Appelez-nous	-
1B	W11641568		Quick Start Guide		Appelez-nous	-
23A	W11728635		Bezel (white)   (Replaces: W11632251)		Appelez-nous	-
5A	W11728636		Panel, Manifold (white)   (Replaces: W11393098)		Appelez-nous	-
6A	W11728631		Knob, Control (white)   (Replaces: W11632047)		Appelez-nous	-
9A	W11730319		Panel, Manifold End Cap (black (right))   (Replaces: W11361200)			Immediately	$ 80.58
9B	W11728826		Panel, Manifold End Cap (white (left))   (Replaces: W11361204)				$ 80.58
9C	W11728824		Panel, Manifold End Cap (white (right))   (Replaces: W11361202)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11730264		Harness, Cooktop   (Replaces: W11334489)				$ 180.62
NI	W11730263		Harness, Main   (Replaces: W11334462)		Appelez-nous	-
NI	W11730272		Harness, Bake   (Replaces: W11454086)			Immediately	$ 59.10
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
