SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts

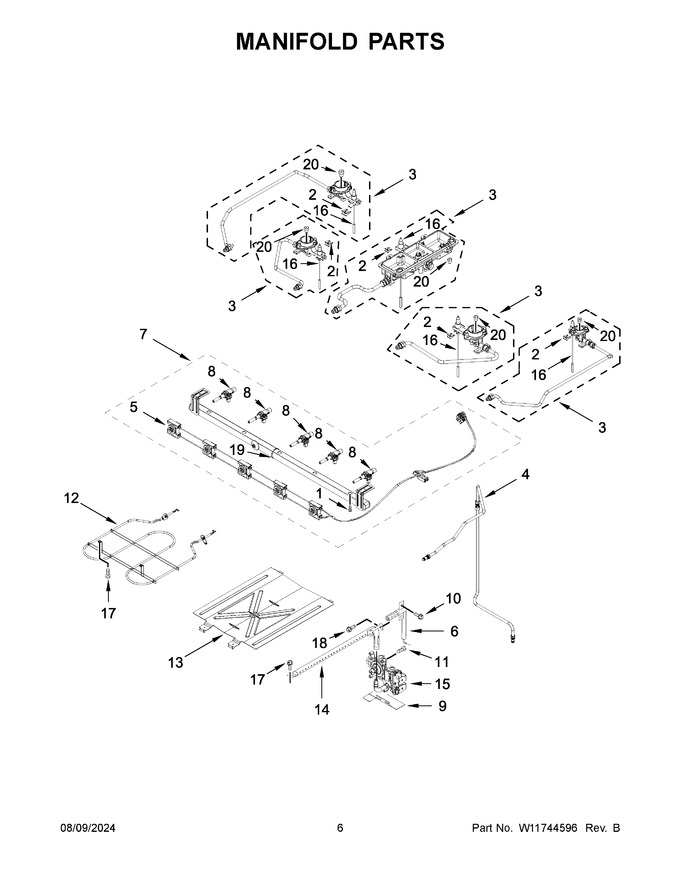

04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
2	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
3	W11728581		Orifice Holder Assembly (18k) (left Front)   (Replaces: W11300870)		Appelez-nous	-
4	W11796249		Tubing (manifold To Regulator)   (Replaces: W11384792)				$ 131.31
5	W11727166		Harness, Igniter (includes Switches)   (Replaces: W11637977)				$ 143.34
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 87.74
7	W11727047		Manifold Assembly   (Replaces: W11279816)		Appelez-nous	-
8	W11728580		Valve, Single (right Front And Center)   (Replaces: W11279839)			Immediately	$ 94.28
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W10898290		Regulator   (Replaces: W10818355)			Immediately	$ 393.66
16	W11453940		Electrode (left Front And Left Rear)   (Replaces: W11428831)				$ 64.46
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	3196265		Screw		Appelez-nous	-
19	WPW10182767		Tie, Wire   (Replaces: W11402210)				$ 7.30
20	ARI68EDB5F1759575D795C9CB1FF25DE44D		Orifice (not Serviced)		Appelez-nous	-
16A	W11453920		Electrode (right Front, Right Rear, And Center)   (Replaces: W11428858)				$ 64.35
16B	W11745758		Electrode (center)   (Replaces: W11581944)		Appelez-nous	-
3A	W11727171		Orifice Holder Assembly (10k) (left Rear)   (Replaces: W11300871)		Appelez-nous	-
3B	W11728388		Orifice Holder Assembly (18k) (right Front)   (Replaces: W11300879)			Immediately	$ 80.68
3C	W11727169		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11300867)		Appelez-nous	-
3D	W11728582		Orifice Holder Assembly (12k) (center)   (Replaces: W11634398)		Appelez-nous	-
8A	W11728579		Valve, Single (left Rear)   (Replaces: W11279838)		Appelez-nous	-
8B	W11728578		Valve, Single (right Rear)   (Replaces: W11279837)		Appelez-nous	-
8C	W11727167		Valve, Single (center)   (Replaces: W11629949)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11730236		Lp Conversion Kit   (Replaces: W11370714)				$ 50.36
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
