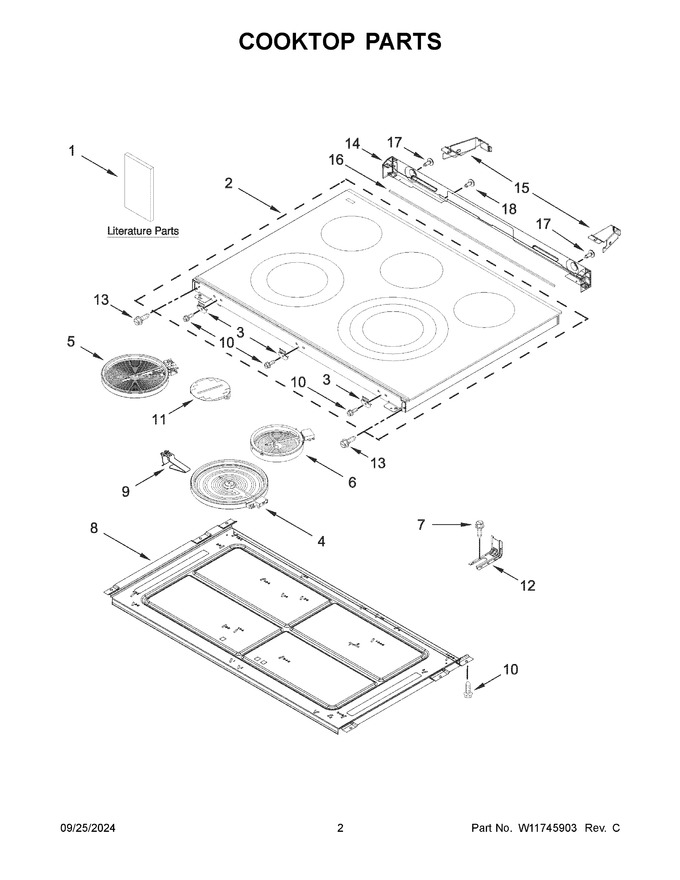

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11640308 | Owner's Manual |
|
- | |||||
| 2 | W11755008 | Cooktop (black (includes, Cooktop Bracket)) (Replaces: W11616660) |
|
$ 1,310.06 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W11747429 | Element (3000w, Triple) (right Front) (Replaces: W11726009) |
|
Immediately | $ 311.31 | ||||
| 5 | W11747448 | Element (dual, 3000w) (left Front) (Replaces: W11726010) |
|
$ 214.25 | |||||
| 6 | W11747449 | Element (single, 1200w) (right Rear) (Replaces: W11724296) |
|
$ 165.20 | |||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 223.66 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11706247 | Element, Warm Zone (center) (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 12 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 14 | W11747424 | Bracket, Front Cooktop (Replaces: W11632793) |
|
$ 198.88 | |||||
| 15 | W11747358 | Corner, Brace (right) (Replaces: W11673745) |
|
$ 26.54 | |||||
| 16 | W11747383 | Gasket Cooktop, Console (Replaces: W11401890) |
|
$ 44.56 | |||||
| 17 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 18 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 15A | W11747357 | Corner, Brace (left) (Replaces: W11673746) |
|
$ 26.54 | |||||
| 1A | W11640328 | Quick Start Guide |
|
- | |||||
| 1B | W11639168 | Tech Sheet |
|
- | |||||
| NI | W11747426 | Harness, Dc (Replaces: W11349007) |
|
$ 167.53 | |||||
| NI | W11747427 | Harness, Cooktop (Replaces: W11341269) |
|
Immediately | $ 215.57 | ||||
| NI | W11747425 | Harness, Console (Replaces: W11341203) |
|
Immediately | $ 223.44 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11747428 | Harness, Main (Replaces: W11351384) |
|
- | |||||
| NI | W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 |
