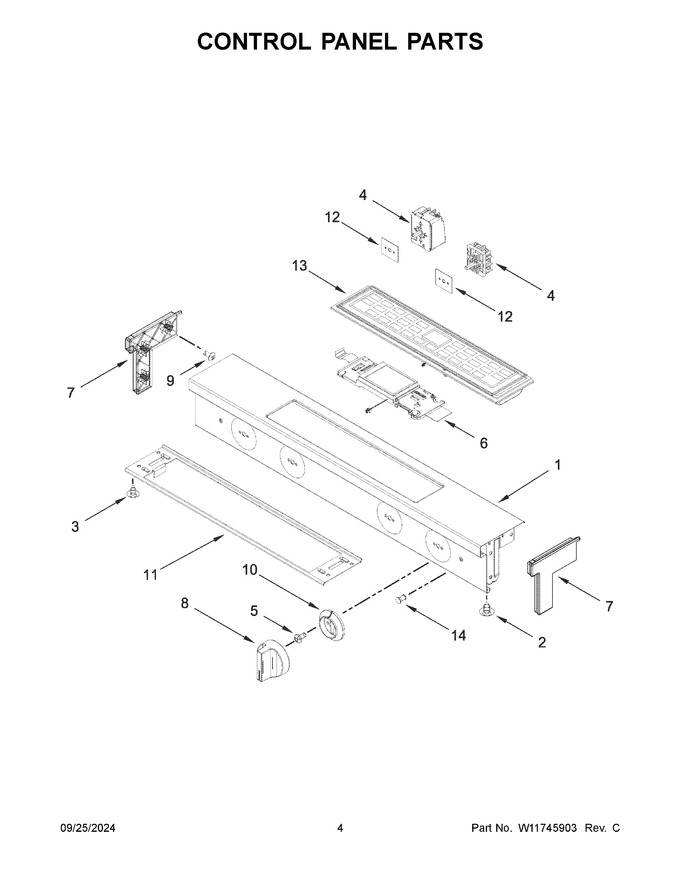

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747381 | Console (black) (Replaces: W11300038) |
|
$ 429.73 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 4 | W10857622 | Switch, Infinite (left Front And Right Front) (Replaces: W10437092) |
|
Immediately | $ 239.88 | ||||
| 5 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 6 | W11747380 | Board, Control (black) (Replaces: W11734473) |
|
$ 443.80 | |||||
| 7 | W11747377 | Endpost, Console (black (left)) (Replaces: W11357953) |
|
Immediately | $ 92.01 | ||||
| 8 | W11730076 | Knob (single, (stainless)) (Replaces: W11635836) |
|
$ 101.49 | |||||
| 9 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 10 | W11730073 | Bezel (stainless) (Replaces: W11635850) |
|
Immediately | $ 63.40 | ||||
| 11 | W11747359 | Mounting, Bracket (Replaces: W11291721) |
|
- | |||||
| 12 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 13 | W11839350 | Assembly, User Interface (Replaces: W11333900) |
|
$ 641.59 | |||||
| 14 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 4A | W11129442 | Switch, Infinite (right Front) (Replaces: W10437097) |
|
Immediately | $ 109.75 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 115.27 | ||||
| 7A | W11747376 | Endpost, Console (black (right)) (Replaces: W11357954) |
|
Immediately | $ 92.01 | ||||
| 8A | W11730074 | Knob (dual, (stainless)) (Replaces: W11635837) |
|
$ 68.40 | |||||
| 8B | W11747362 | Knob (triple, (stainless)) (Replaces: W11635839) |
|
$ 63.20 |
