Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2215823 Clip, Air Duct   (Replaces: 842534) Special Order $ 10.94

2 984550 Box, Control Appelez-nous -
3 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

4 488474 Screw, 8-32 X 3/8 Appelez-nous -
5 934045 Control Box Front Appelez-nous -
6 938049 Toggle, Switch Appelez-nous -
7 WP4317800 Thermostat & Barrier Assembly   (Replaces: 1114273) In-Stock Immediately $ 278.68

8 WP489128 Screw, 8-32 X 3/8   (Replaces: 488500) Special Order $ 11.40

9 4387478 Socket   (Replaces: 851067) In-Stock Immediately $ 115.67

10 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

11 836482 Knob, Temperature Appelez-nous -
12 842399 Duct, Air Appelez-nous -
13 987954 Baffle, Air Appelez-nous -
14 SM999 Motor, Fan   (Replaces: 938124) In-Stock Immediately $ 30.26

15 992920 Blade, Fan Special Order $ 39.91

16 00487887 Screw, 3-48 X 1/4   (Replaces: 487887) Special Order $ 244.80

17 548263 Fan, Bracket Double Appelez-nous -
18 548264 Fan, Bracket Single Appelez-nous -
19 548268 Fan Mounting Grommet Appelez-nous -
20 538449 Screw Grommet Appelez-nous -
21 WP489069 Screw, 8 X 1/2   (Replaces: 488772) In-Stock Immediately $ 8.40

22 836216 Baffle, Liner Top Appelez-nous -
23 842339 Grommet Appelez-nous -
24 991285 Scroll Fan Appelez-nous -
25 WP2196003 Barrier, Tube   (Replaces: 989573) Special Order $ 8.35

27 841269 Air, Scoop Assembly (includes Illus. 28) Appelez-nous -
28 844871 Gasket, Air Scoop Appelez-nous -
29 938439 Retainer, Damper Appelez-nous -
30 837445 Control Knob Assembly Appelez-nous -
31 837444 Knob, Retainer Appelez-nous -
32 984466 Cover, Evaporator Appelez-nous -
33 848445 Grommet Appelez-nous -
34 WP488729 Screw, 8-15 X 1/2   (Replaces: 488992) In-Stock Immediately $ 8.28

35 836144 End Cap, Cover Appelez-nous -
36 841606 Gasket, Evaporator Appelez-nous -
37 946145 Air Diffuser Assembly Appelez-nous -
38 842394 Gasket, Air Diffuser Appelez-nous -
39 836667 Spacer Appelez-nous -
40 488357 Screw, 8 X 1-1/4 Appelez-nous -
41 842404 Drain Pan Assembly Appelez-nous -
42 841770 Fitting, Drain Pan Appelez-nous -
43 845564 Gasket, Drain Pan Appelez-nous -
44 842259 Cap, Drain Appelez-nous -
45 821142 Cover, Heat Exchanger   (Replaces: 836514) Special Order $ 68.91

46 659776 Grommet, Inlet Tube Appelez-nous -
47 W10822278 Defrost Timer, 10 Hr.   (Replaces: 943435) In-Stock Immediately $ 34.44

48 WP3388228 Screw, 6-20 X 3/8   (Replaces: 488911) Special Order $ 7.30

49 835740 Grille Appelez-nous -
50 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.78

50 350956 Xenamel, Almond (13 Oz. Spray Can) Special Order $ 54.01

50 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

50 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

50 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

50 876370 Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 243.14

50 542639 Cement, Insulation (1-1/4 Oz.) Appelez-nous -
50 515393 Transformer (115-230 Volt) Appelez-nous -
50 876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 243.14

50 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

50 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

50 481782 Wiring Defrost Timer Appelez-nous -
50 350942 Primer White (13 Oz. Spray Can) Special Order $ 94.14

50 350941 Leveler, Enamel (13 Oz. Spray Can) Appelez-nous -
50 285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 59.89

50 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

50 261890 Xenamel, Gold (13 Oz. Spray Can) Appelez-nous -
50 285365 Paint, Spray (13 Oz.) (toast) Appelez-nous -
50 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
50 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

50 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
50 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

50 799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -
50 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

50 261891 Enamel, Gold (1 Qt. Uncut) Appelez-nous -
50 978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
50 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
50 285368 Enamel, Platinum (1 Qt. Uncut) Appelez-nous -
50 833938 Kit, Terminal Connector Special Order $ 8.47

50 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

50 479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

50 876370 Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) Special Order $ 243.14

50 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
50 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

50 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 82.37

50 799908 Silicone (spray) Appelez-nous -
50 484310 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
50 799832 Kit. Porcelain Repair (white) Appelez-nous -
LIT879809 Parts, List Appelez-nous -
LIT1118523 Service & Wiring Sheet Appelez-nous -
LIT1116405 Energy Label Appelez-nous -
LIT1111507 Care & Use Guide Appelez-nous -

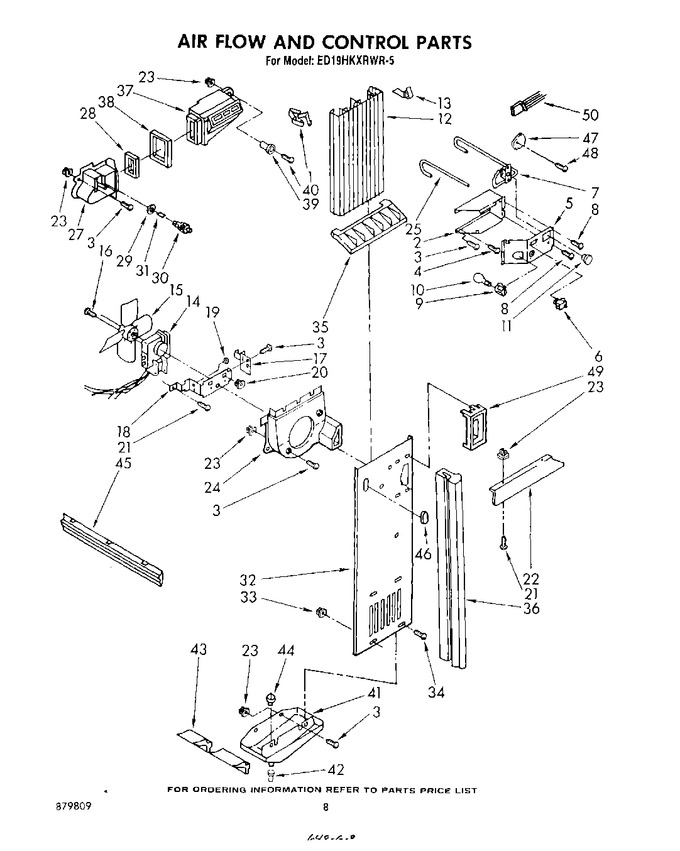

    View Diagram in Separate Window     Print Icon   Print Part List
