SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Door


04 - Freezer Door


05 - Airflow And Control , Lit/optional


06 - Shelf

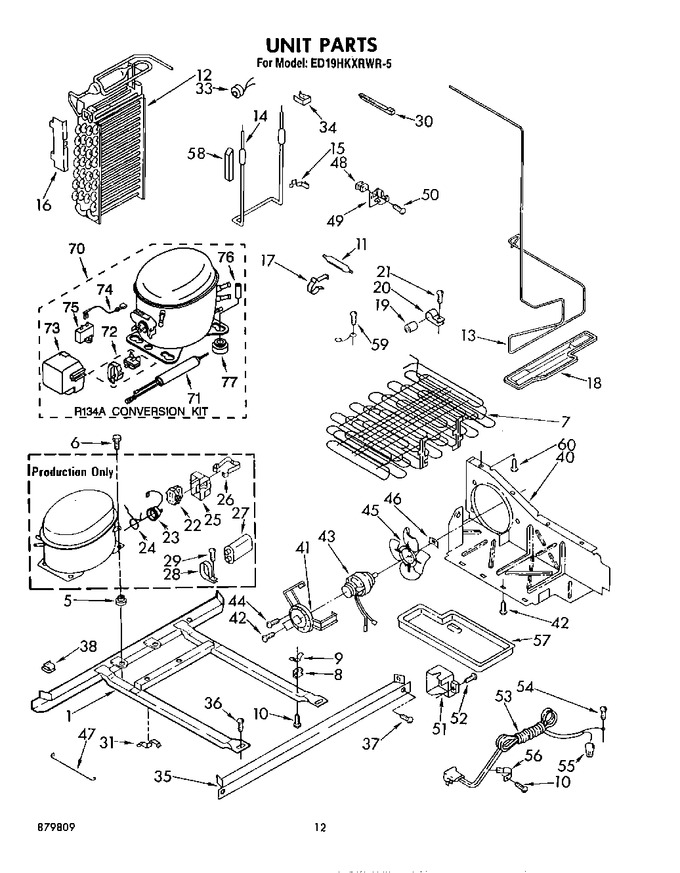

07 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	945457		Unit, Frame		Appelez-nous	-
5	876811		Grommet, Compressor (4)   (Replaces: 1108038)				$ 7.79
6	876811		Screw (4)   (Replaces: 489116)				$ 7.79
7	943480		Condenser Assembly		Appelez-nous	-
8	943447		Grommet, Mounting (4)		Appelez-nous	-
9	548738		Clamp, Mounting (4)		Appelez-nous	-
10	W11624204		Screw, 8 X 1/2 (4)   (Replaces: 486194)				$ 14.72
11	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
12	945577		Evaporator Assembly		Appelez-nous	-
13	1114140		Heat, Exchanger		Appelez-nous	-
14	WP549433		Heater, Defrost   (Replaces: 934445)				$ 175.73
15	549419		Heater, Clamp (4)		Appelez-nous	-
16	549435		Shield, Heat (2)		Appelez-nous	-
17	548508		Drier, Clamp		Appelez-nous	-
18	945572		Pan, Drip		Appelez-nous	-
19	510769		Dampener (2)		Appelez-nous	-
20	510716		Tube Clamp (2)		Appelez-nous	-
21	WPW10141625		Screw 8-32 1/2 (2)   (Replaces: 488197)				$ 22.22
22	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
23	1114281		Overload		Appelez-nous	-
24	1114190		Overload Spring		Appelez-nous	-
25	1108144		Terminal Cover		Appelez-nous	-
26	938384		Strap, Cover		Appelez-nous	-
27	1101182		Running Capacitor		Appelez-nous	-
28	1101184		Clamp, Capacitor		Appelez-nous	-
29	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
30	851095		Strap		Appelez-nous	-
31	548744		Clip, Unit Cover		Appelez-nous	-
33	WP4387489		Defrost, Bimetal   (Replaces: 934424)				$ 108.99
34	513584		Clamp		Appelez-nous	-
35	548662		Unit, Rail		Appelez-nous	-
36	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
37	489340		Screw (4)   (Replaces: 488683)		Appelez-nous	-
38	548745		Clip, Wire		Appelez-nous	-
40	850764		Air, Baffle		Appelez-nous	-
41	548695		Fan, Mountig Bracket		Appelez-nous	-
42	488624		Screw, 8 X 3/8 (3)		Appelez-nous	-
43	833697		Motor, Fan   (Replaces: 1107714)			Immediately	$ 88.15
44	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
45	989524		Fan, Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
47	850156		Guard, Fan Motor		Appelez-nous	-
48	944454		Grommet		Appelez-nous	-
49	842436		Support, Evaporator		Appelez-nous	-
50	WP681414		Screw   (Replaces: 489049)			Immediately	$ 8.47
51	549947		Box, Junction		Appelez-nous	-
52	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
53	850626		Cord, Service		Appelez-nous	-
54	488474		Screw, Ground		Appelez-nous	-
55	227991		Wire Connector		Appelez-nous	-
56	549193		Clamp				$ 14.06
57	842041		Tray, Evaporating				$ 64.92
58	652985		Baffle, Air Evaporator		Appelez-nous	-
59	303776		Screw, Ground Wire   (Replaces: 488879)		Appelez-nous	-
60	488978		Screw (5)		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 90.65
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 191.05
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
76	4387559		Sleeve		Appelez-nous	-
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
77	876764		Valve, Access(3/16``)			Immediately	$ 95.92
77	978029		Valve Access (5/8``)				$ 93.85
77	978030		Valve, Access (3/4``)				$ 137.25
77	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
77	978026		Valve, Access (5/16``)			Immediately	$ 134.49
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
77	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
