02 - Cabinet
03 - Refrigerator Door
04 - Freezer Door

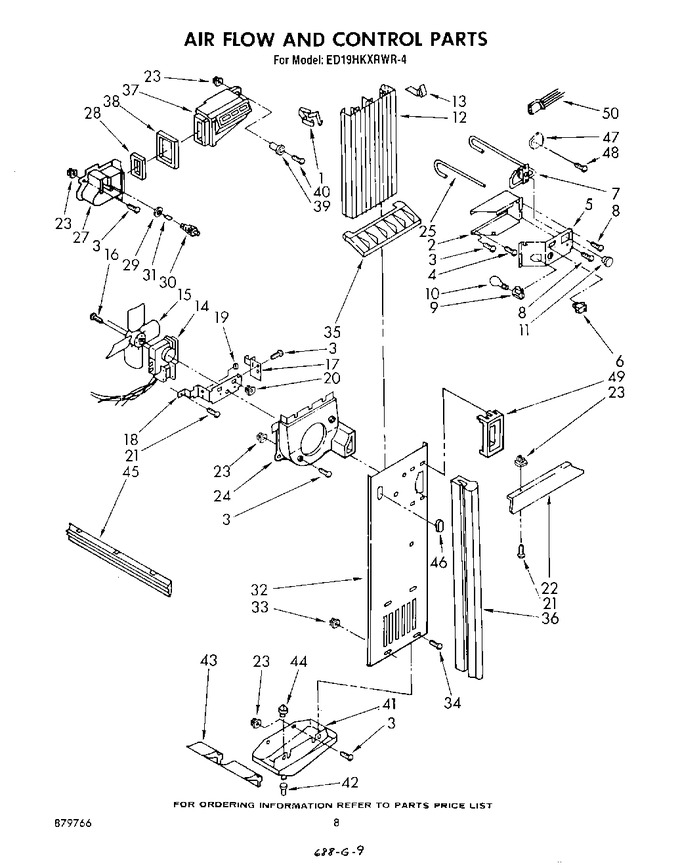

05 - Airflow And Control , Lit/optional
06 - Shelf
07 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.94 | |||||
| 2 | 984550 | Box, Control |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 4 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 5 | 934045 | Control Box Front |
|
- | |||||
| 6 | 938049 | Toggle, Switch |
|
- | |||||
| 7 | WP819470 | Thermostat & Barrier Assembly (Replaces: 1108003) |
|
$ 164.96 | |||||
| 8 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 11.40 | |||||
| 9 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 10 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 11 | 836482 | Knob, Temperature |
|
- | |||||
| 12 | 842399 | Duct, Air |
|
- | |||||
| 13 | 987954 | Baffle, Air |
|
- | |||||
| 14 | SM999 | Motor, Fan (Replaces: 549212) |
|
Immediately | $ 30.26 | ||||
| 15 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 16 | 00487887 | Screw, 3-48 X 1/4 (Replaces: 487887) |
|
$ 244.80 | |||||
| 17 | 548263 | Fan, Bracket Double |
|
- | |||||
| 18 | 548264 | Fan, Bracket Single |
|
- | |||||
| 19 | 548268 | Fan Mounting Grommet |
|
- | |||||
| 20 | 538449 | Screw Grommet |
|
- | |||||
| 21 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 22 | 836216 | Baffle, Liner Top |
|
- | |||||
| 23 | 842339 | Grommet |
|
- | |||||
| 24 | 991285 | Scroll Fan |
|
- | |||||
| 25 | WP2196003 | Barrier, Tube (Replaces: 989573) |
|
$ 8.35 | |||||
| 27 | 841269 | Air, Scoop Assembly (includes Illus. 28) |
|
- | |||||
| 28 | 844871 | Gasket, Air Scoop |
|
- | |||||
| 29 | 938439 | Retainer, Damper |
|
- | |||||
| 30 | 837445 | Control Knob Assembly |
|
- | |||||
| 31 | 837444 | Knob, Retainer |
|
- | |||||
| 32 | 984466 | Cover, Evaporator |
|
- | |||||
| 33 | 848445 | Grommet |
|
- | |||||
| 34 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 8.28 | ||||
| 35 | 836144 | End Cap, Cover |
|
- | |||||
| 36 | 841606 | Gasket, Evaporator |
|
- | |||||
| 37 | 946145 | Air Diffuser Assembly |
|
- | |||||
| 38 | 842394 | Gasket, Air Diffuser |
|
- | |||||
| 39 | 836667 | Spacer |
|
- | |||||
| 40 | 488357 | Screw, 8 X 1-1/4 |
|
- | |||||
| 41 | 842404 | Drain Pan Assembly |
|
- | |||||
| 42 | 841770 | Fitting, Drain Pan |
|
- | |||||
| 43 | 845564 | Gasket, Drain Pan |
|
- | |||||
| 44 | 842259 | Cap, Drain |
|
- | |||||
| 45 | 821142 | Cover, Heat Exchanger (Replaces: 836514) |
|
$ 68.91 | |||||
| 46 | 659776 | Grommet, Inlet Tube |
|
- | |||||
| 47 | W10822278 | Defrost Timer, 10 Hr. (Replaces: 943435) |
|
Immediately | $ 34.44 | ||||
| 48 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 488911) |
|
$ 7.30 | |||||
| 49 | 835740 | Grille |
|
- | |||||
| 50 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 50 | 542639 | Cement, Insulation (1-1/4 Oz.) |
|
- | |||||
| 50 | 481782 | Wiring Defrost Timer |
|
- | |||||
| 50 | 515393 | Transformer (115-230 Volt) |
|
- | |||||
| 50 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 50 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 50 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 50 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 50 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 50 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 50 | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 50 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 50 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 50 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 50 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 50 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 50 | 261891 | Enamel, Gold (1 Qt. Uncut) |
|
- | |||||
| 50 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 50 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 50 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 50 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 50 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 50 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 50 | 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 243.14 | |||||
| 50 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 50 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 50 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 50 | 799908 | Silicone (spray) |
|
- | |||||
| 50 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 50 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| LIT879766 | Parts, List |
|
- | ||||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 350941 | Xleveler, Enamel (13 Oz. Spray Can) |
|
- | ||||||
| LIT1115479 | Service & Wiring Sheet |
|
- | ||||||
| LIT1116405 | Energy Label |
|
- | ||||||
| LIT1111507 | Care & Use Guide |
|
- | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | ||||||
| 261890 | Xenamel, Gold (13 Oz. Spray Can) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 |
