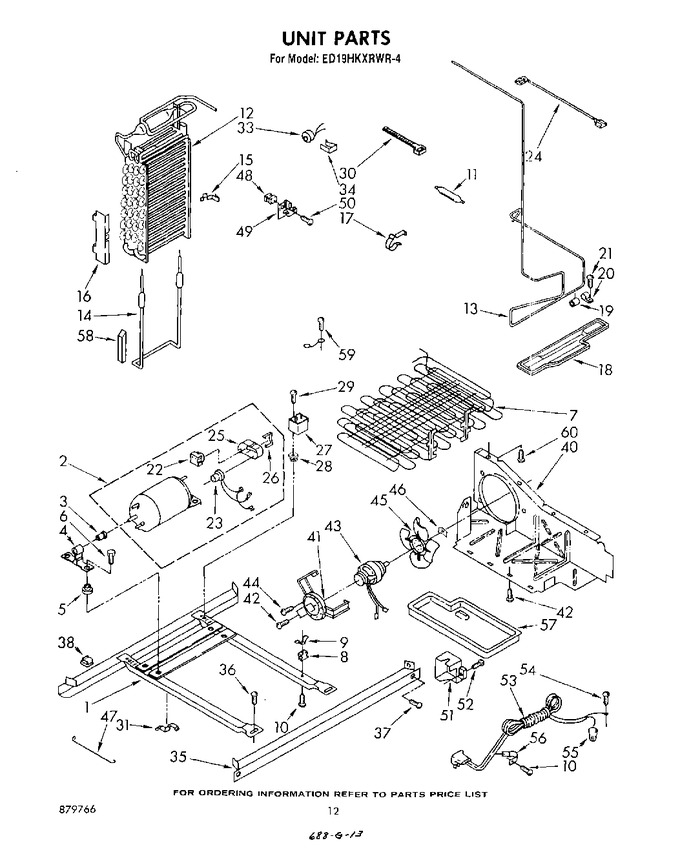

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1105198 | Frame |
|
- | |||||
| 2 | 819194 | Compressor Kit Includes Items (22, 23, 25, 26) |
|
- | |||||
| 3 | 1105219 | Grommet, Compressor Bracket |
|
- | |||||
| 4 | 1105220 | Bracket, Mounting |
|
- | |||||
| 5 | 1105200 | Grommet, Compressor (4) |
|
- | |||||
| 6 | 489139 | Screw (4) |
|
- | |||||
| 7 | 943480 | Condenser Assembly |
|
- | |||||
| 8 | 943447 | Grommet, Mounting (4) |
|
- | |||||
| 9 | 548738 | Clamp, Mounting (4) |
|
- | |||||
| 10 | W11624204 | Screw, 8 X 1/2 (4) (Replaces: 486194) |
|
$ 14.72 | |||||
| 11 | W10843121 | Dryer (Replaces: 945424) |
|
Immediately | $ 57.13 | ||||
| 12 | 945577 | Evaporator Assembly |
|
- | |||||
| 13 | 1105201 | Heat, Exchanger |
|
- | |||||
| 14 | WP549433 | Heater, Defrost (Replaces: 934445) |
|
$ 175.73 | |||||
| 15 | 549419 | Heater, Clamp (4) |
|
- | |||||
| 16 | 549435 | Shield, Heat (2) |
|
- | |||||
| 17 | 548508 | Drier, Clamp |
|
- | |||||
| 18 | 945572 | Pan, Drip |
|
- | |||||
| 19 | 510769 | Dampener (2) |
|
- | |||||
| 20 | 510716 | Tube Clamp (2) |
|
- | |||||
| 21 | WPW10141625 | Screw 8-32 1/2 (2) (Replaces: 488197) |
|
$ 22.22 | |||||
| 22 | 1105209 | Start Relay |
|
- | |||||
| 23 | 1105210 | Overload |
|
- | |||||
| 24 | 1105190 | Capacitor, Wiring |
|
- | |||||
| 25 | 1105221 | Terminal Cover |
|
- | |||||
| 26 | 1105222 | Strap, Cover |
|
- | |||||
| 27 | 1105212 | Running Capacitor |
|
- | |||||
| 28 | 509812 | Screw Grommet |
|
- | |||||
| 29 | W11693756 | Screw, 8 X 5/8 (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 30 | 851095 | Strap |
|
- | |||||
| 31 | 548744 | Clip, Unit Cover |
|
- | |||||
| 33 | WP4387489 | Defrost, Bimetal (Replaces: 934424) |
|
$ 108.99 | |||||
| 34 | 513584 | Clamp |
|
- | |||||
| 35 | 548662 | Unit, Rail |
|
- | |||||
| 36 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 37 | 489340 | Screw (4) (Replaces: 488683) |
|
- | |||||
| 38 | 548745 | Clip, Wire |
|
- | |||||
| 40 | 850764 | Air, Baffle |
|
- | |||||
| 41 | 548695 | Fan, Mountig Bracket |
|
- | |||||
| 42 | 488624 | Screw, 8 X 3/8 (3) |
|
- | |||||
| 43 | 833697 | Fan, Motor (Replaces: 946538) |
|
Immediately | $ 88.15 | ||||
| 44 | 681390 | Screw, 8-32 X 3/8 (3) (Replaces: 489019) |
|
$ 13.71 | |||||
| 45 | 989524 | Fan, Blade |
|
- | |||||
| 46 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 47 | 850156 | Guard, Fan Motor |
|
- | |||||
| 48 | 944454 | Grommet |
|
- | |||||
| 49 | 842436 | Support, Evaporator |
|
- | |||||
| 50 | WP681414 | Screw (Replaces: 489049) |
|
Immediately | $ 8.47 | ||||
| 51 | 549947 | Box, Junction |
|
- | |||||
| 52 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 8.28 | ||||
| 53 | 850626 | Cord, Service |
|
- | |||||
| 54 | 488474 | Screw, Ground |
|
- | |||||
| 55 | 227991 | Wire Connector |
|
- | |||||
| 56 | 549193 | Clamp |
|
$ 14.06 | |||||
| 57 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 58 | 652985 | Baffle, Air Evaporator |
|
- | |||||
| 59 | 303776 | Screw, Ground Wire (Replaces: 488879) |
|
- | |||||
| 60 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 60 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 60 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 60 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 60 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 60 | 488978 | Screw (5) |
|
- | |||||
| 60 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 60 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
