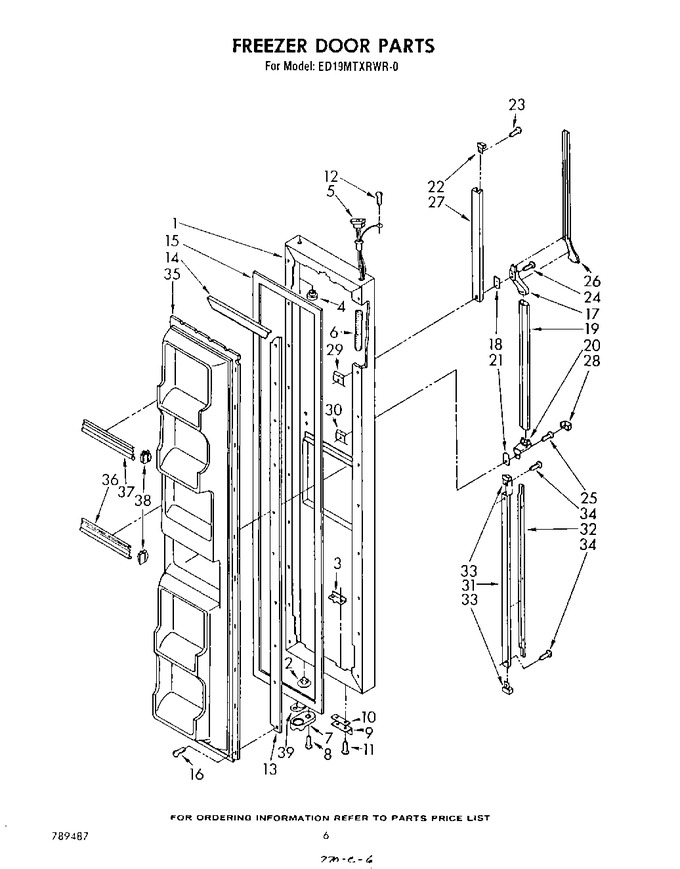

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1100386		Freezer, Door Panel (platinum)		Appelez-nous	-
1	943203		Freezer, Door Panel (white)		Appelez-nous	-
1	943205		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
1	943207		Freezer, Door Panel (almond)		Appelez-nous	-
1	1100385		Freezer, Door Panel (toast)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	509929		Cap, Hinge		Appelez-nous	-
5	938378		Wire, Assembly Cross Over		Appelez-nous	-
6	991415		Tube, Wiring		Appelez-nous	-
7	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
8	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
9	988420		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488549		Screw, 8 X 5/8		Appelez-nous	-
11	488930		Screw (repair)		Appelez-nous	-
12	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 7.08
13	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
14	836122		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
15	2188405A		Door, Gasket Magnetic   (Replaces: 939566)				$ 368.63
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
17	935103		Center End Cap, Handle		Appelez-nous	-
18	935075		Shim, End Center		Appelez-nous	-
19	1110280		Handle, Center		Appelez-nous	-
19	1110289		Handle, Center (for Platinum Model Only)		Appelez-nous	-
20	935105		End, Cap Handle				$ 32.80
21	935076		Shim, Handle End		Appelez-nous	-
22	941259		End Cap		Appelez-nous	-
23	489075		Screw, 8-32 X 5/8		Appelez-nous	-
24	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
25	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
26	1108797		Insert, Handle (top) (platinum)		Appelez-nous	-
26	1108793		Insert, Handle (top) (white)		Appelez-nous	-
26	1108794		Insert, Handle (top) (golden Harvest)		Appelez-nous	-
26	1108795		Insert, Handle (top) (almond)		Appelez-nous	-
26	1108796		Insert, Handle (top) (toast)		Appelez-nous	-
27	941954		Retainer Insert		Appelez-nous	-
28	987873		End Cap Cover		Appelez-nous	-
29	941242		Screw Anchor		Appelez-nous	-
30	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
31	935880		Retainer, Insert		Appelez-nous	-
32	1110285		Insert, Extension (platinum)		Appelez-nous	-
32	1110281		Insert, Extension (white)		Appelez-nous	-
32	1110282		Insert, Extension (golden Harvest)		Appelez-nous	-
32	1110283		Insert, Extension (almond)		Appelez-nous	-
32	1110284		Insert, Extension (toast)		Appelez-nous	-
33	935106		End Cap, Retainer		Appelez-nous	-
34	488915		Screw, 6-32 X 1/2		Appelez-nous	-
35	1101209		Interior, Door Panel		Appelez-nous	-
36	1110277		Trim, Door Shelf		Appelez-nous	-
37	1110278		Trim, Door Shelf		Appelez-nous	-
38	839904		Retainer, Door Trim				$ 5.65
39	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
