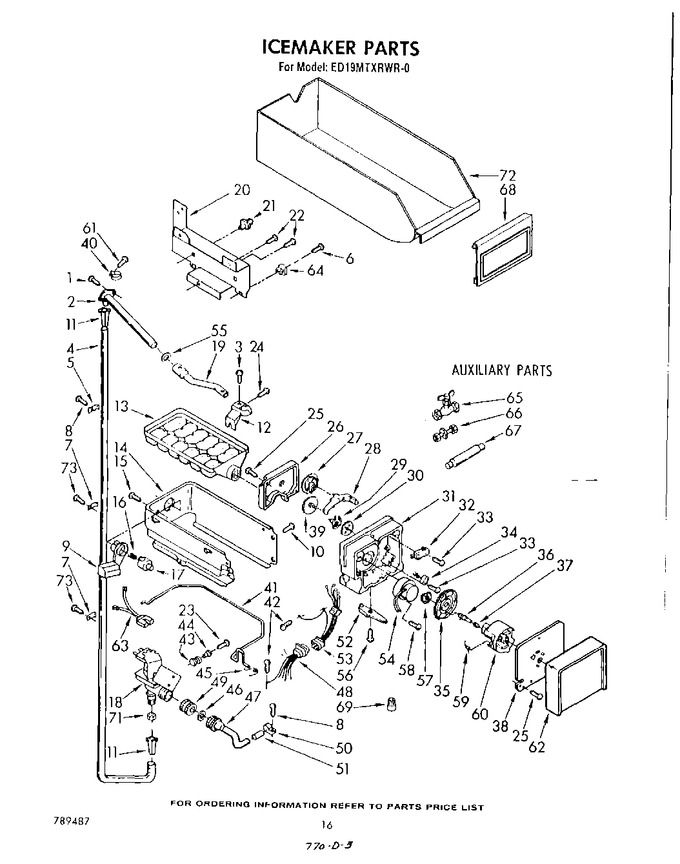

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98165 | Screw, 8 X 5/8 (2) (Replaces: 488401) |
|
$ 8.57 | |||||
| 2 | WP2196157 | Fitting, Tube (Replaces: 849908) |
|
Immediately | $ 12.59 | ||||
| 3 | WP965173 | Screw, 8 X 3/8 (Replaces: 487533) |
|
Immediately | $ 11.87 | ||||
| 4 | W10823511 | Tube (Replaces: 844847) |
|
Immediately | $ 32.41 | ||||
| 5 | 836077 | Clamp, Tube |
|
- | |||||
| 6 | W11693756 | Screw, 8 X 5/8 (Replaces: 488495) |
|
Immediately | $ 14.76 | ||||
| 7 | 836472 | Clamp, Tube (2) |
|
- | |||||
| 8 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 9 | 627521 | Support & Cam |
|
- | |||||
| 10 | 488203 | Screw, 8-18 X 5/8 (4) |
|
- | |||||
| 11 | 4387491 | Insert, Plastic (3) (Replaces: 841707) |
|
$ 8.23 | |||||
| 12 | 844845 | Collar, Inlet |
|
- | |||||
| 13 | 627500 | Tray, Ice |
|
- | |||||
| 14 | 627538 | Frame |
|
- | |||||
| 15 | 488867 | Screw, 8-18 X 1/2 |
|
- | |||||
| 16 | 627522 | Spring, Bearing |
|
- | |||||
| 17 | 627523 | Bearing |
|
- | |||||
| 18 | 4318047 | Valve, Solenoid (Replaces: 627558) |
|
Immediately | $ 74.09 | ||||
| 19 | 943265 | Tube, Water Inlet |
|
- | |||||
| 20 | 989740 | Bracket, Mounting (ice Maker) |
|
- | |||||
| 21 | 842898 | Stud, Frame Mounting (2) |
|
- | |||||
| 22 | 488624 | Screw, 8 X 3/8 (3) |
|
- | |||||
| 23 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 7.92 | |||||
| 24 | WP488729 | Screw, 8 X 1/2 (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 25 | W11693756 | Screw, 8-18 X 5/8 (3) (Replaces: 488269) |
|
Immediately | $ 14.76 | ||||
| 26 | 627519 | Cover, Gear |
|
- | |||||
| 27 | 627517 | Gear & Cam |
|
- | |||||
| 28 | 627518 | Lever, Cam |
|
$ 21.92 | |||||
| 29 | 627516 | Cam & Pinion |
|
- | |||||
| 30 | 627736 | Gear |
|
- | |||||
| 31 | 627530 | Housing, Control |
|
- | |||||
| 32 | 16802 | Switch, Timer (Replaces: 627512) |
|
Immediately | $ 7.04 | ||||
| 33 | 488360 | Screw, 4-24 X 3/4 |
|
- | |||||
| 34 | 627727 | Switch, Water Valve |
|
- | |||||
| 35 | 627504 | Gear, Drive |
|
- | |||||
| 36 | 627509 | Pin, Drive |
|
- | |||||
| 37 | 627508 | Spring, Drive Pin |
|
- | |||||
| 38 | 627513 | Plate |
|
- | |||||
| 39 | 627735 | Gear & Pinion |
|
- | |||||
| 40 | WP488878 | Clamp (Replaces: 488878) |
|
$ 12.18 | |||||
| 41 | 627607 | Arm, Shutoff |
|
- | |||||
| 42 | 488542 | Screw, Ground |
|
- | |||||
| 43 | 510723 | Grommet (2) |
|
- | |||||
| 44 | 510906 | Eyelet Spacer (2) |
|
- | |||||
| 45 | 627526 | Spring, Shutoff Arm |
|
- | |||||
| 46 | WP16123 | Washer (Replaces: 488292) |
|
$ 8.16 | |||||
| 47 | 836200 | Tube, Inlet Valve |
|
- | |||||
| 48 | 482254 | Harness, Cabinet (ice Maker) |
|
- | |||||
| 49 | 537588 | Nut, Valve |
|
- | |||||
| 50 | 510716 | Clamp Tube |
|
- | |||||
| 51 | WP2158826 | Dampener (Replaces: 836074) |
|
$ 1.82 | |||||
| 52 | 627524 | Lever, Shutoff |
|
- | |||||
| 53 | 627611 | Harness (ice Maker) |
|
- | |||||
| 54 | 627726 | Motor |
|
- | |||||
| 55 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 56 | WP488787 | Screw, 8-18 X 1/2 (Replaces: 488787) |
|
$ 11.26 | |||||
| 57 | 627503 | Gear, Timer |
|
- | |||||
| 58 | 488985 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 59 | 627507 | Spring, Cam |
|
- | |||||
| 60 | 627506 | Cam (includes Illus. 37 & 59) |
|
- | |||||
| 61 | WP965173 | Screw 8 X 3/8 (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 62 | 1101206 | Cover, Front |
|
- | |||||
| 63 | 549447 | Wiring Assembly (water Valve) |
|
- | |||||
| 64 | 987994 | Grommet (2) |
|
- | |||||
| 65 | 541157 | Valve, Shutoff (1/4`` X 1/4``) |
|
- | |||||
| 66 | 512503 | Union, 1/4`` X 3/16`` |
|
- | |||||
| 67 | 978488 | Filter Kit |
|
- | |||||
| 68 | 1108783 | Front Cover |
|
- | |||||
| 69 | 227991 | Wire Connector |
|
- | |||||
| 71 | WP627018 | Nut (Replaces: 627018) |
|
$ 11.51 | |||||
| 72 | 1101205 | Ice Cube Pan |
|
- | |||||
| 73 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 8.40 |
