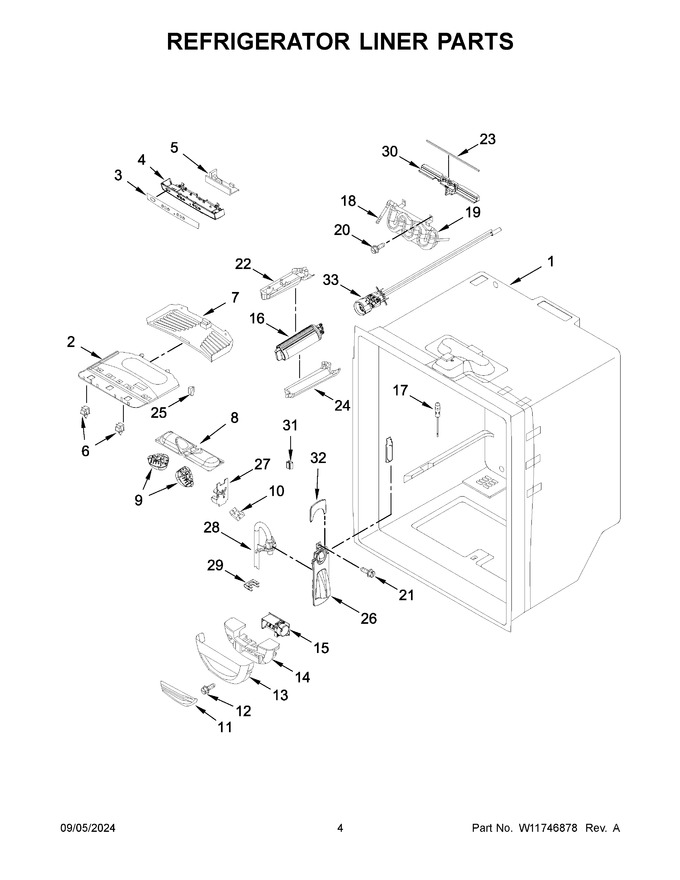

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464764 | Module, Light |
|
$ 118.91 | |||||
| 3 | W11712701 | Overlay (Replaces: W10746278) |
|
$ 208.47 | |||||
| 4 | W11416469 | Module, Control (Replaces: W10464767) |
|
Immediately | $ 234.84 | ||||
| 5 | W11642241 | Board, Control (Replaces: W11593757) |
|
Immediately | $ 253.80 | ||||
| 6 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 106.02 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 42.63 | |||||
| 10 | W11527411 | Foam, Plate Switch (Replaces: W11437004) |
|
$ 23.38 | |||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: W11657832) |
|
$ 50.15 | |||||
| 15 | WPW10594329 | Control, Damper (Replaces: W10594329) |
|
Immediately | $ 171.52 | ||||
| 16 | EDRARXD1B | Filter, Water (Replaces: W11536439) |
|
Immediately | $ 49.99 | ||||
| 17 | W11690896 | Thermistor (Replaces: 12791416) |
|
Immediately | $ 29.76 | ||||
| 18 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 19 | W11229977 | Tank, Water (Replaces: W11097710) |
|
Immediately | $ 101.58 | ||||
| 20 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 21 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 22 | W11706224 | Plate, Filter (Replaces: W11510657) |
|
$ 24.16 | |||||
| 23 | WPW10130483 | Gasket, Seal (Replaces: 10685510) |
|
$ 6.24 | |||||
| 24 | W11706225 | Cover, Filter (Replaces: W11510654) |
|
Immediately | $ 99.24 | ||||
| 25 | W11527839 | Switch, Limit (Replaces: W11495787) |
|
Immediately | $ 40.54 | ||||
| 26 | W11519867 | Facade, Dispenser (Replaces: W11551461) |
|
Immediately | $ 26.35 | ||||
| 27 | W11515355 | Plate, Switch (Replaces: W11437528) |
|
Immediately | $ 8.58 | ||||
| 28 | W11677725 | Guide, Waterline (Replaces: W11031909) |
|
Immediately | $ 24.76 | ||||
| 29 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 19.15 | |||||
| 30 | W11714300 | Insulation, Water Tank (Replaces: W11657834) |
|
$ 57.84 | |||||
| 31 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 13.14 | |||||
| 32 | W11519867 | Facade, Dispenser (top) (Replaces: W11437003) |
|
Immediately | $ 26.35 | ||||
| 33 | W11838110 | Manifold, Water System (Replaces: W11519957) |
|
Immediately | $ 139.14 | ||||
| NI | W11642013 | Harness, Fresh Food Control (includes Thermistor) (Replaces: W11609495) |
|
Immediately | $ 77.05 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
