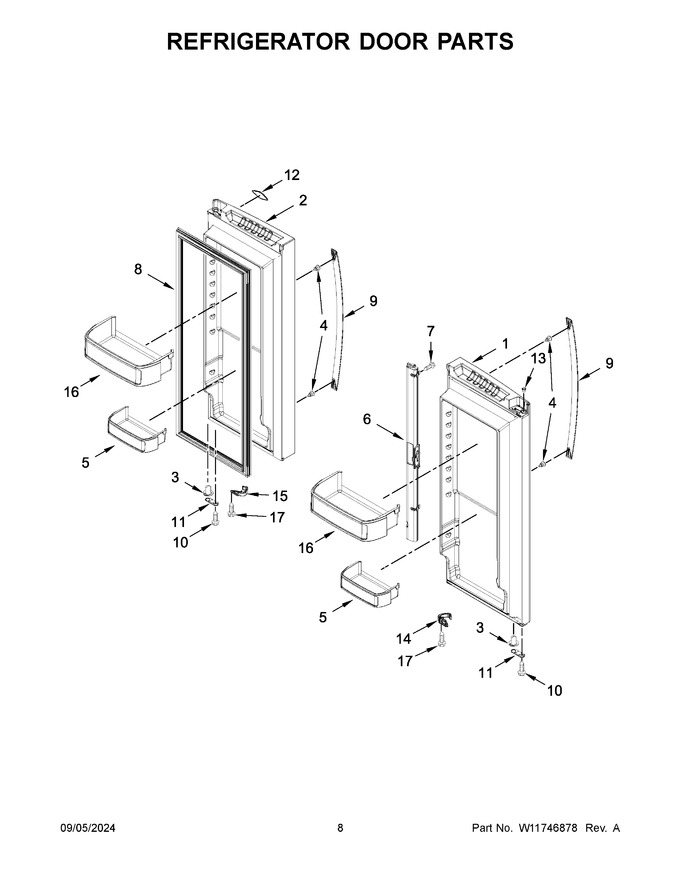

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661563 | Door, Refrigerator Left Hand (stainless) (Replaces: W11622647) |
|
$ 1,074.65 | |||||
| 2 | W11435333 | Door, Refrigerator Right Hand (stainless) (Replaces: W11377201) |
|
$ 1,070.65 | |||||
| 3 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 4 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 5 | W11749491 | Bucket, Medium (Replaces: W11697423) |
|
$ 52.86 | |||||
| 6 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 177.93 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 | ||||
| 9 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 151.77 | ||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 14 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 15 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 16 | W11749492 | Bucket, Gallon (Replaces: W11698393) |
|
Immediately | $ 66.00 | ||||
| 17 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 |
